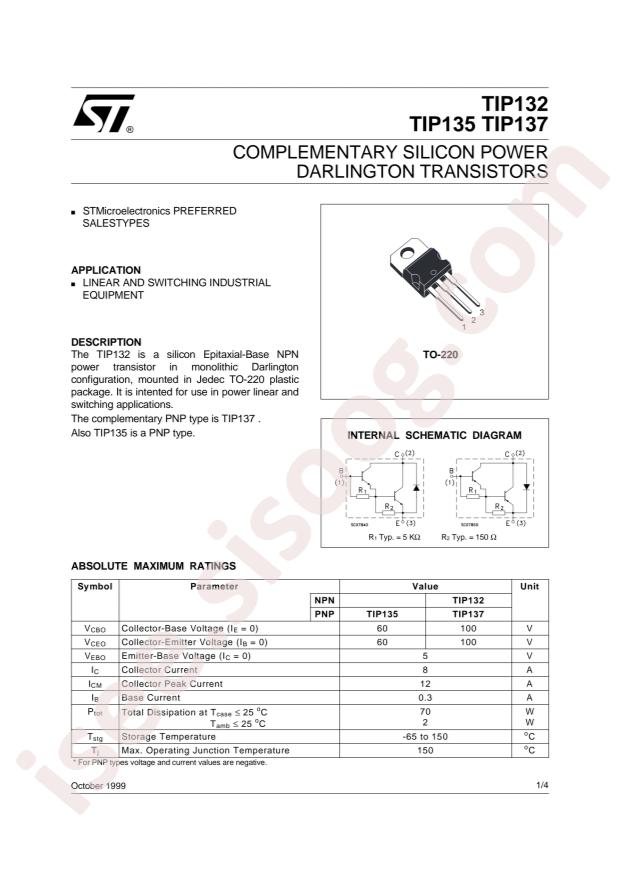

TIP132 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TIP132
|
|
حجم فایل
|
64.598
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
4
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistors
-
Datasheet:
STMicroelectronics TIP132
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
8A
-
Power Dissipation (Pd):
2W
-
Transition frequency (fT):
-
-
DC current gain (hFE@Vce,Ic):
1000@4V,4A
-
Collector-emitter voltage (Vceo):
100V
-
Collector cut-off current (Icbo@Vcb):
500uA
-
Collector-emitter saturation voltage (VCE(sat)@Ic,Ib):
4V@6A,30mA
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
8A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
4V @ 30mA, 6A
-
Current - Collector Cutoff (Max):
500µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
1000 @ 4A, 4V
-
Power - Max:
2W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
TIP132
-
detail:
Bipolar (BJT) Transistor NPN - Darlington 100V 8A 2W Through Hole TO-220AB
