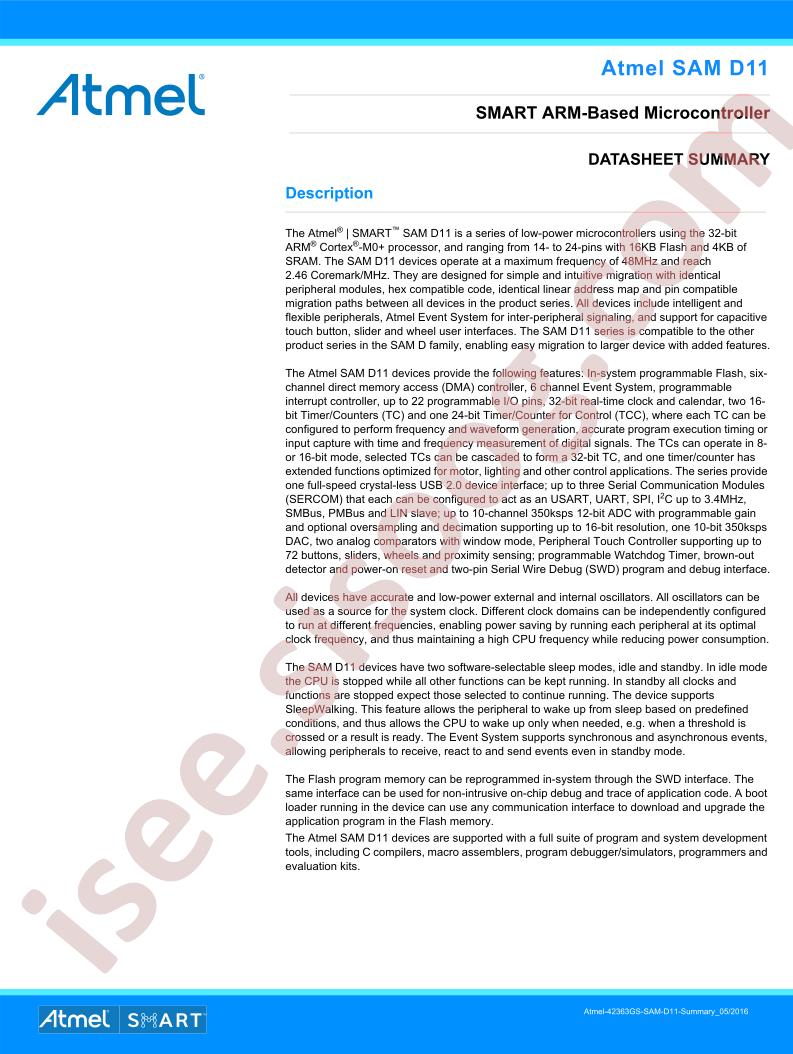

SAM D11 Summary Datasheet
Datasheet specifications
| Datasheet's name | SAM D11 Summary |
|---|---|
| File size | 1018.957 KB |
| File type | |
| Number of pages | 20 |
Download Datasheet SAM D11 Summary |
Download Datasheet |
|---|
Other documentations
SAM D11 Datasheet 981 pages
SAM D11 Series Errata~ 8 pages
Technical specifications
- Manufacturer: Microchip Technology
- Series: SAM D11D
- Packaging: Bulk
- Part Status: Active
- Core Processor: ARM® Cortex®-M0+
- Core Size: 32-Bit
- Speed: 48MHz
- Connectivity: I²C, LINbus, SPI, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, DMA, POR, WDT
- Number of I/O: 18
- Program Memory Size: 16KB (16K x 8)
- Program Memory Type: FLASH
- EEPROM Size: -
- RAM Size: 4K x 8
- Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.63V
- Data Converters: A/D 8x12b; D/A 1x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-XFBGA, WLCSP
- Supplier Device Package: 20-WLCSP (2.43x1.93)
- Base Part Number: ATSAMD11
- detail: ARM® Cortex®-M0+ SAM D11D Microcontroller IC 32-Bit 48MHz 16KB (16K x 8) FLASH 20-WLCSP (2.43x1.93)
