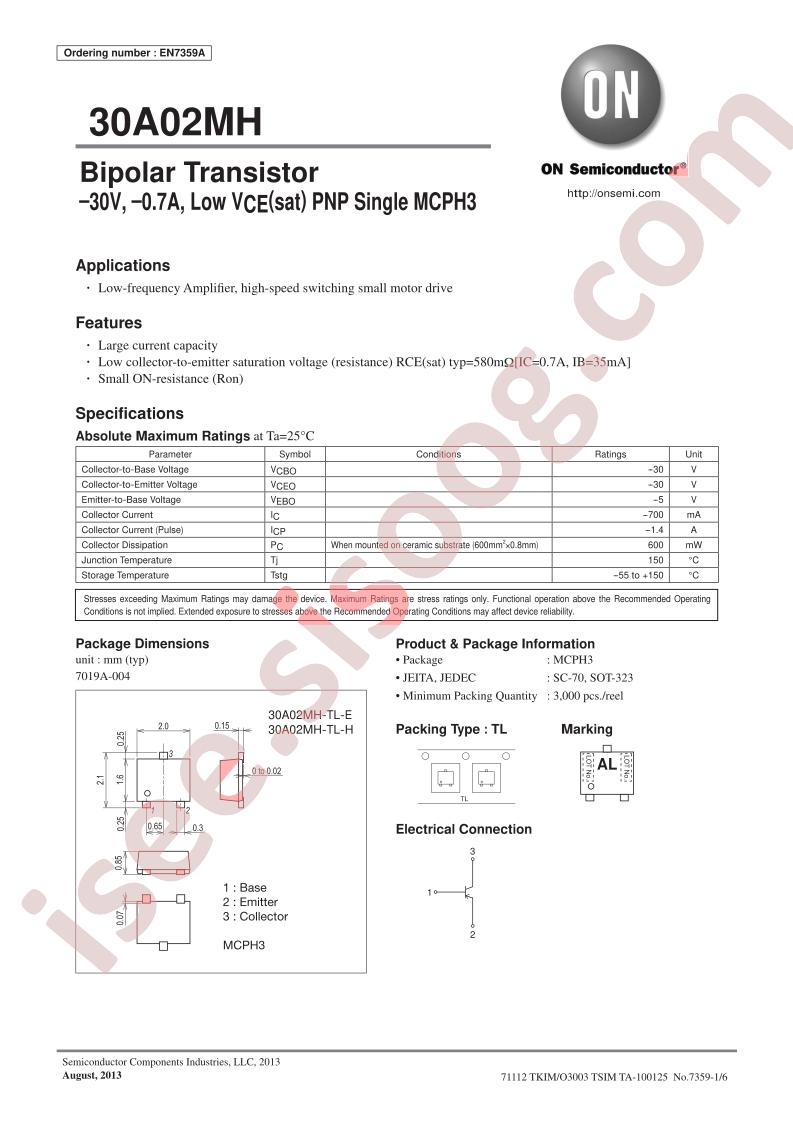

دیتاشیت 30A02MH-TL-E
مشخصات دیتاشیت
| نام دیتاشیت |
30A02MH
|
| حجم فایل |
371.871
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi 30A02MH-TL-E
-
Transistor Type:
PNP
-
Collector Current (Ic):
700mA
-
Power Dissipation (Pd):
600mW
-
Transition Frequency (fT):
520MHz
-
DC Current Gain (hFE@Ic,Vce):
200@10mA,2V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
30V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
220mV@10mA,200mA
-
Package:
MCPH-3
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
700mA
-
Voltage - Collector Emitter Breakdown (Max):
30V
-
Vce Saturation (Max) @ Ib, Ic:
220mV @ 10mA, 200mA
-
Current - Collector Cutoff (Max):
100nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
200 @ 10mA, 2V
-
Power - Max:
600mW
-
Frequency - Transition:
520MHz
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
3-SMD, Flat Lead
-
Supplier Device Package:
3-MCPH
-
Base Part Number:
30A02
-
detail:
Bipolar (BJT) Transistor PNP 30V 700mA 520MHz 600mW Surface Mount 3-MCPH
