TPS2110APWR Datasheet

TPS2110APWR

Datasheet specifications

Datasheet's name TPS2110APWR
File size 80.222 KB
File type pdf
Number of pages 27

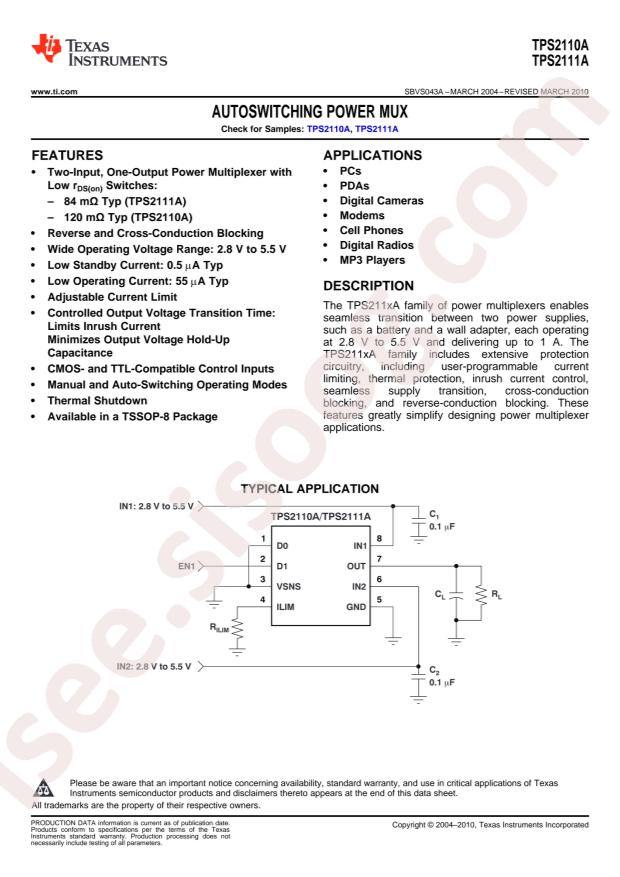

Download Datasheet TPS2110APWR

Download Datasheet

Other documentations

TPS2110A/11A 26 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS2110APWR
  • Input Voltage: 2.8V~5.5V
  • Output Current: 750mA
  • Operating Temperature -: -40°C~+85°C
  • Package: TSSOP-8
  • Manufacturer: Texas Instruments
  • Internal Switch(s): Yes
  • Delay Time - ON: 500µs
  • Current - Output (Max): 750mA
  • Applications: Handheld/Mobile Devices
  • FET Type: N-Channel
  • Delay Time - OFF: 3ms
  • Voltage - Supply: 2.8V ~ 5.5V
  • Part Status: Active
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 8-TSSOP (0.173", 4.40mm Width)
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Type: Source Selector Switch
  • Ratio - Input:Output: 2:1
  • Series: -
  • Base Part Number: TPS211
  • Current - Supply: 55µA
  • Supplier Device Package: 8-TSSOP
  • detail: OR Controller Source Selector Switch N-Channel 2:1 8-TSSOP
