دیتاشیت TL2575HV-05QKTTRQ1

مشخصات دیتاشیت

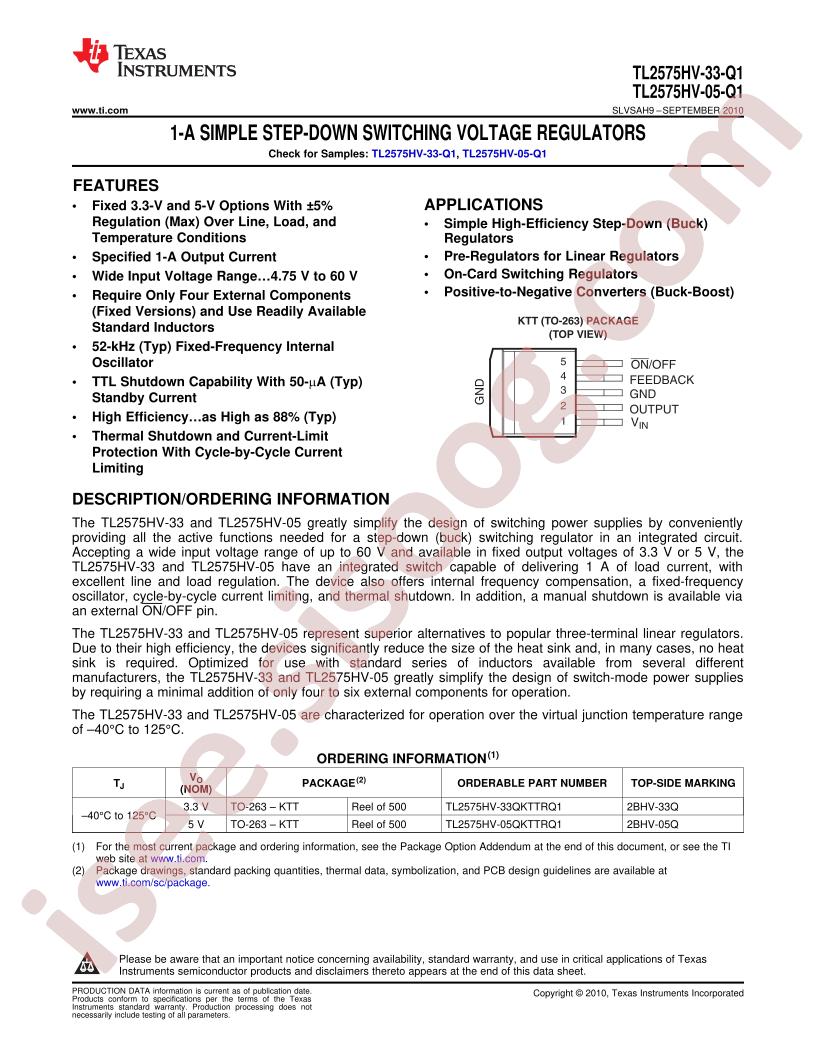

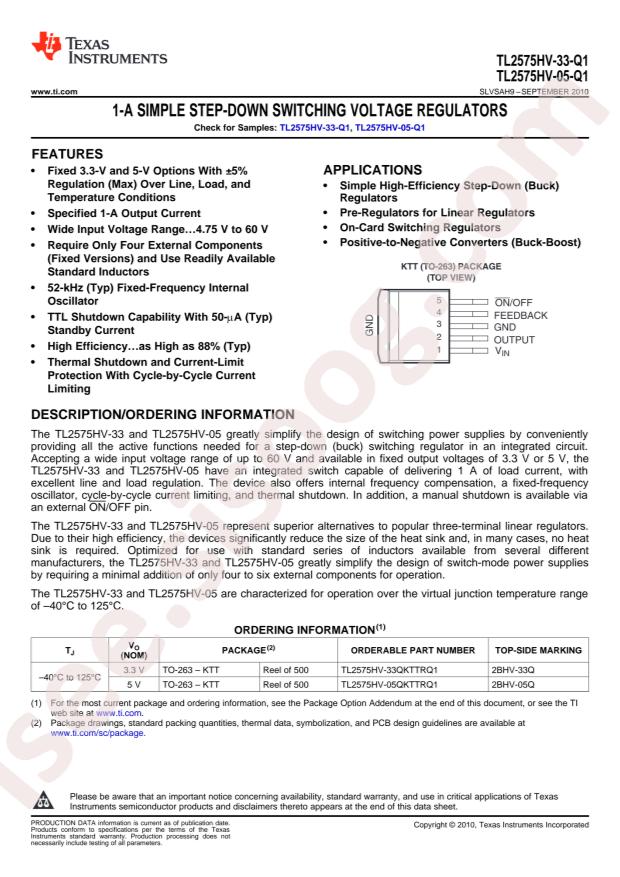

دانلود دیتاشیت TL2575HV-(05,33)-Q1	TL2575HV-(05,33)-Q1 Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TL2575HV-05QKTTRQ1
Output Type: Fixed
Input Voltage: 4.75V~60V
Output Voltage: 5V
Number of Outputs: 1
Switching Frequency: 52kHz
Output Current (Max): 1A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: DDPAK(TO-263-5)
Manufacturer: Texas Instruments
Series: Automotive, AEC-Q100
Voltage - Input (Min): 4.75V
Base Part Number: TL257
Current - Output: 1A
Frequency - Switching: 52kHz
Part Status: Active
Voltage - Input (Max): 60V
Mounting Type: Surface Mount
Supplier Device Package: DDPAK/TO-263-5
Voltage - Output (Min/Fixed): 5V
Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Voltage - Output (Max): -
Packaging: Digi-Reel®
Output Configuration: Positive
Synchronous Rectifier: No
detail: Buck Switching Regulator IC Positive Fixed 5V 1 Output 1A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
