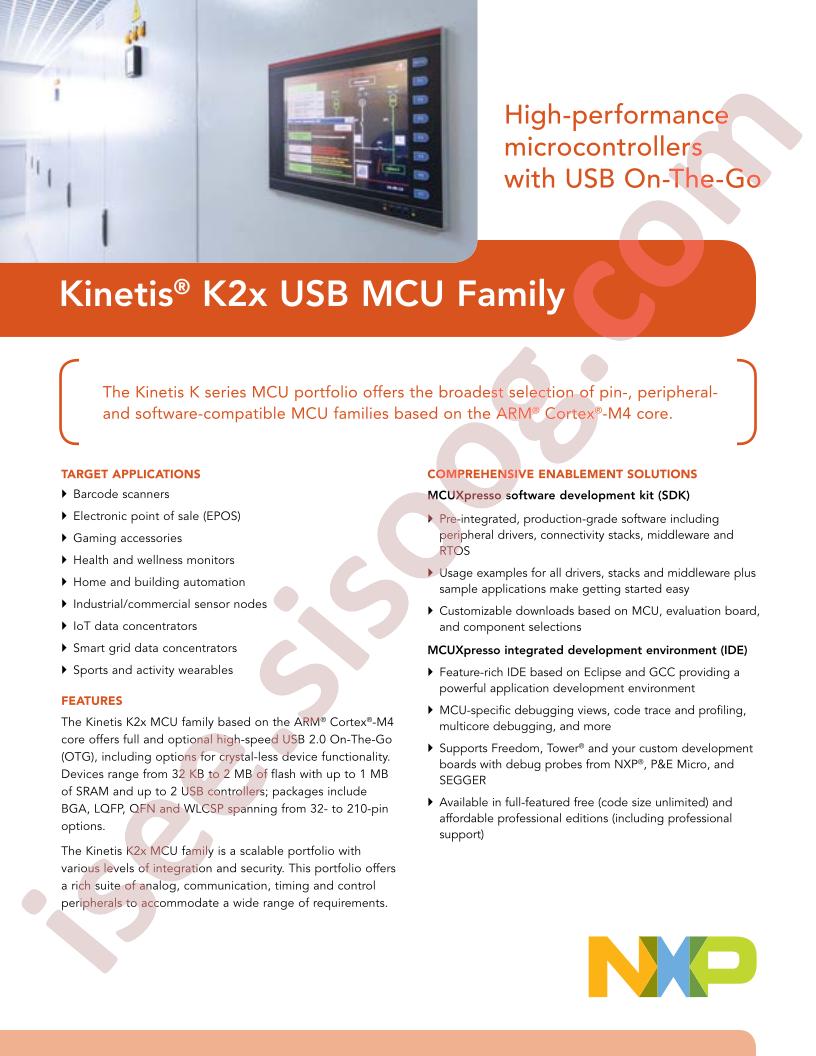

K2x USB MCU Family Fact Sheet Datasheet

Datasheet specifications

Datasheet's name	K2x USB MCU Family Fact Sheet
File size	214.629 KB
File type	pdf
Number of pages	3

Download Datasheet K2x USB MCU Family Fact Sheet	Download Datasheet

Other documentations

Kinetis Mask Set 3N96B Errata 26 pages

K20_LQ/MD12 Ref Manual 1929 pages

MK20FN1M0VLQ12 83 pages

Technical specifications

CAN: -
I2C: -
I2S: -
SPI: -
RoHS: true
EEPROM: 1MB
CPU Core: ARM Cortex-M4
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
RAM Size: 128KB
Watchdog: Yes
ADC (Bit): 16bit
DAC (Bit): 12bit
Datasheet: NXP Semicon MK20FN1M0VLQ12R
PWM (Bit): -
8Bit Timer: -
UART/USART: -
16Bit Timer: -
32Bit Timer: -
Real-Time Clock: -
CPU Maximum Speed: 120MHz
GPIO Ports Number: 100
Low-Voltage Detect: Yes
CCP Capture/Compare: -
Internal Comparator: -
Internal Oscillator: Yes
Peripheral/Function: DMA;WDT;Low-VoltageDetect;IrDA
Program Memory Type: FLASH
Direct Memory Access: Yes
Program Storage Size: 1MB
Universal Serial Bus: Yes
communication protocol: -
Operating Voltage Range: 1.71V~3.6V
Infrared Data Association: Yes
Operating Temperature Range: -40°C~+105°C
Secure Digital Input and Output: -
Package: LQFP-144(20x20)
Manufacturer: NXP Semicon
Series: Kinetis K20
Packaging: Tape & Reel (TR)
Part Status: Active
Core Processor: ARM® Cortex®-M4
Core Size: 32-Bit
Speed: 120MHz
Connectivity: CANbus, EBI/EMI, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG
Peripherals: DMA, I²S, LVD, POR, PWM, WDT
Number of I/O: 100
Program Memory Size: 1MB (1M x 8)
EEPROM Size: -
Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V
Data Converters: A/D 58x16b; D/A 2x12b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 105°C (TA)
Mounting Type: Surface Mount
Package / Case: 144-LQFP
Supplier Device Package: 144-LQFP (20x20)
Base Part Number: MK20
detail: ARM® Cortex®-M4 Kinetis K20 Microcontroller IC 32-Bit 120MHz 1MB (1M x 8) FLASH 144-LQFP (20x20)
