FDPF51N25 Datasheet

FDP51N25, FDPF51N25

Datasheet specifications

Datasheet's name FDP51N25, FDPF51N25
File size 1227.26 KB
File type pdf
Number of pages 13

Download Datasheet FDP51N25, FDPF51N25

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 38W
  • Total Gate Charge (Qg@Vgs): 70nC@10V
  • Drain Source Voltage (Vdss): 250V
  • Input Capacitance (Ciss@Vds): 3410pF@25V
  • Continuous Drain Current (Id): 51A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 60mΩ@10V,25.5A

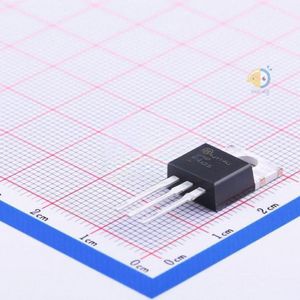

  • Package: TO-220
  • Manufacturer: onsemi
  • Series: UniFET™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 250V
  • Current - Continuous Drain (Id) @ 25°C: 51A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 60mOhm @ 25.5A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 70nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 3410pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 38W (Tc)
  • Mounting Type: Through Hole

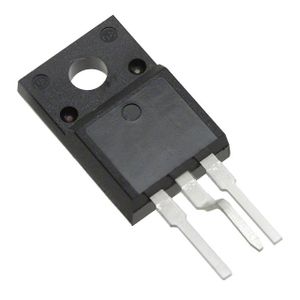

  • Supplier Device Package: TO-220F
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: FDPF5
  • detail: N-Channel 250V 51A (Tc) 38W (Tc) Through Hole TO-220F
