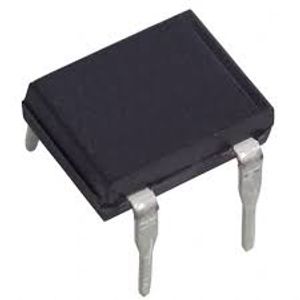

DF08M
在 2 商店
19,700 IRT
| Manufacturer | onsemi |
| Package | 4-EDIP (0.300", 7.62mm) |
| Datasheet | DF005M - DF10M |
| Description | Bridge Rectifier Single Phase Standard 800V Through Hole 4-DIP |
价格变化
规格
- RoHS true
- Category Diodes/Bridge Rectifiers
- Datasheet onsemi DF08M
- Reverse Voltage (Vr) 800V
- Operating Temperature -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If) 1.1V@1A
- Peak Forward Surge Current 50A
- Reverse Leakage Current (Ir) 5uA@800V
- Average Rectified Current (Io) 1.5A
- Package MDIP-4
- Manufacturer onsemi
- Series -
- Packaging Tube
- Part Status Active
- Diode Type Single Phase
- Technology Standard
- Voltage - Peak Reverse (Max) 800V
- Current - Average Rectified (Io) 1.5A
- Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
- Current - Reverse Leakage @ Vr 5µA @ 800V
- Mounting Type Through Hole
- Package / Case 4-EDIP (0.300", 7.62mm)
- Supplier Device Package 4-DIP
- Base Part Number DF08
- detail Bridge Rectifier Single Phase Standard 800V Through Hole 4-DIP
