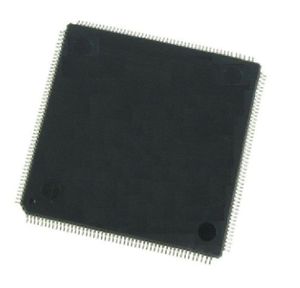

STM32F479BIT6
在 2 商店
价格尚未确定
| Manufacturer | STMicroelectronics |
| Package | 208-LQFP |
| Datasheet | STM32F479xx |
| Description | ARM® Cortex®-M4 STM32F4 Microcontroller IC 32-Bit 180MHz 2MB (2M x 8) FLASH 208-LQFP (28x28) |
规格
- Manufacturer STMicroelectronics
- Series STM32F4
- Packaging Tray
- Part Status Active
- Core Processor ARM® Cortex®-M4
- Core Size 32-Bit
- Speed 180MHz
- Connectivity CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG
- Peripherals Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
- Number of I/O 161
- Program Memory Size 2MB (2M x 8)
- Program Memory Type FLASH
- EEPROM Size -
- RAM Size 384K x 8
- Voltage - Supply (Vcc/Vdd) 1.7V ~ 3.6V
- Data Converters A/D 24x12b; D/A 2x12b
- Oscillator Type Internal
- Operating Temperature -40°C ~ 85°C (TA)
- Mounting Type Surface Mount
- Package / Case 208-LQFP
- Supplier Device Package 208-LQFP (28x28)
- Base Part Number STM32F479
- detail ARM® Cortex®-M4 STM32F4 Microcontroller IC 32-Bit 180MHz 2MB (2M x 8) FLASH 208-LQFP (28x28)
