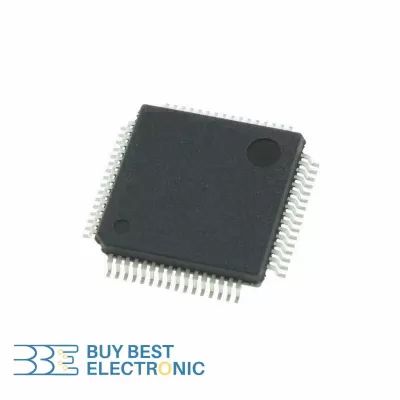

STM32F205RCT6
在 7 商店
从 525,000 至 1,200,000 IRT
| Manufacturer | STMicroelectronics |
| Package | 64-LQFP |
| Datasheet | STM32F205xx, STM32F207xx |
| Description | --- |
价格变化
规格
- RoHS true
- CPU Core ARM Cortex-M3
- Category Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- Watchdog Yes
- ADC (Bit) 12bit
- DAC (Bit) 12bit
- Datasheet STMicroelectronics STM32F205RCT6
- LCD Module Yes
- CPU Maximum Speed 120MHz
- GPIO Ports Number 51
- Low-Voltage Detect Yes
- Internal Oscillator Yes
- Direct Memory Access Yes
- Program Storage Size 256KB
- Universal Serial Bus Yes
- Operating Voltage Range 1.8V~3.6V
- Infrared Data Association Yes
- Operating Temperature Range -40°C~+85°C
- Package LQFP-64(10x10)
- Manufacturer STMicroelectronics
- Mfr STMicroelectronics
- Series STM32F2
- Part Status Active
- Core Processor ARM® Cortex®-M3
- Core Size 32-Bit
- Speed 120MHz
- Connectivity CANbus, I²C, IrDA, LINbus, MMC, SPI, UART/USART, USB OTG
- Peripherals Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
- Program Memory Size 256KB (256K x 8)
- Program Memory Type FLASH
- EEPROM Size -
- RAM Size 100K x 8
- Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
- Data Converters A/D 16x12b; D/A 2x12b
- Oscillator Type Internal
- Operating Temperature -40°C ~ 85°C (TA)
- Mounting Type Surface Mount
- Package / Case 64-LQFP
- Supplier Device Package 64-LQFP (10x10)
- Number of I/O 51
- Base Product Number STM32F205
