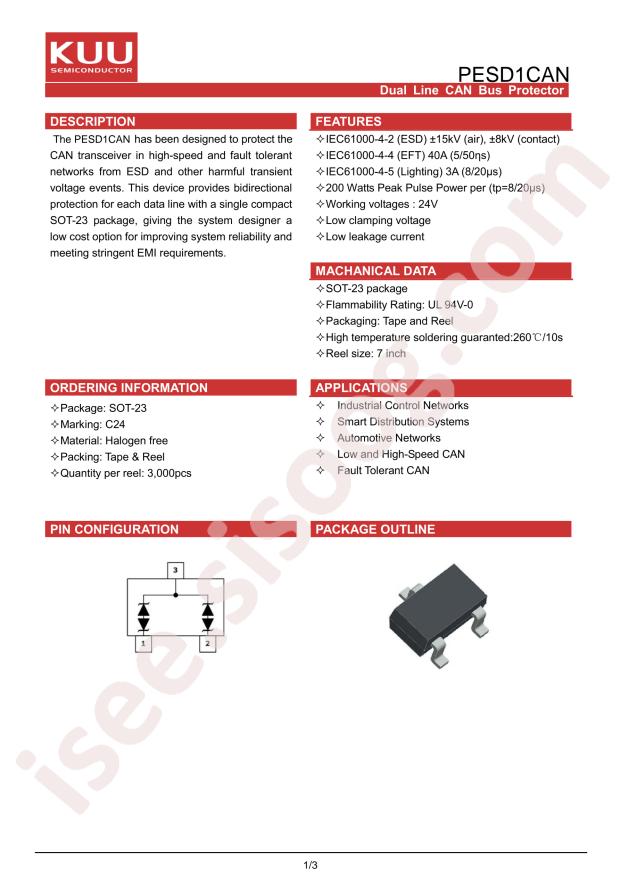

PESD1CAN 数据手册
数据手册规格
|
数据手册名称
|
PESD1CAN
|
|
文件大小
|
66.987
千字节
|
|
文件类型
|
pdf
|
|
页数
|
3
|
技术规格
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Polarity:
Bi-Directional
-
Datasheet:
BORN PESD1CAN
-
Clamping Voltage@Ipp:
48V
-
Breakdown Voltage (VBR):
26.7V
-
Peak Pulse Current(Ipp)@8/20us:
6A
-
Reverse Stand-Off Voltage (Vrwm):
24V
-
Package:
SOT-23
-
Manufacturer:
BORN
-
Breakdown Voltage:
26V
-
Maximum Clamping Voltage:
50V
-
Peak Pulse Current (Ipp)@10/1000us:
6A@8/20us
-
Number of Lines:
2
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Contact Discharge Vesd:
20kV
-
Reverse Leakage Current:
1uA
-
Peak Pulse Power(Ppp)@8/20us:
200W
-
Junction Capacitance(Cj)@1MHz:
17pF
