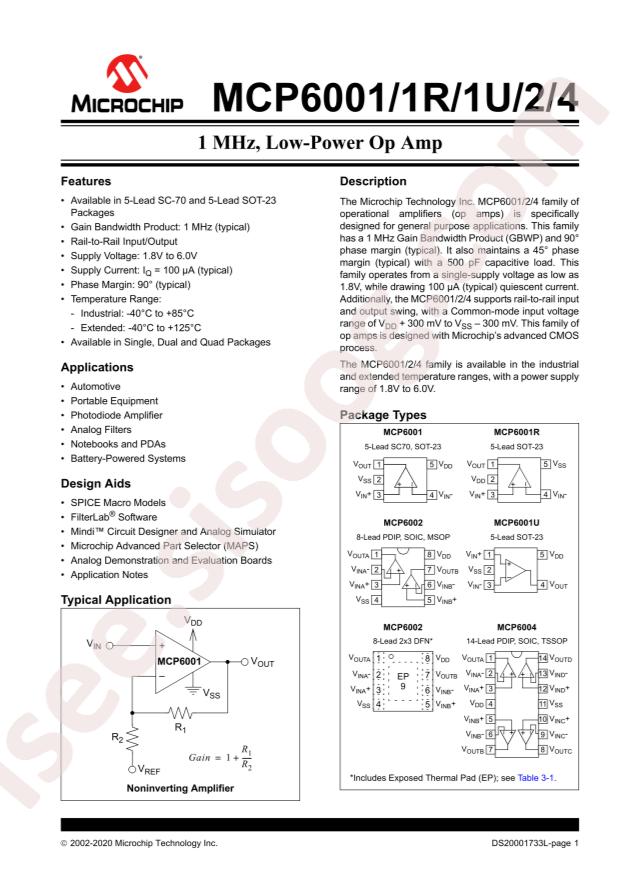

MCP6004-I/P Datasheet
Datasheet specifications
| Datasheet's name | MCP6004-I/P |
|---|---|
| File size | 91.35 KB |
| File type | |
| Number of pages | 50 |
Download Datasheet MCP6004-I/P |
Download Datasheet |
|---|
Other documentations
MCP6001/1R/1U/2/4 50 pages
Technical specifications
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Datasheet: Microchip Tech MCP6004-I/P
- -3db Bandwidth: -
- Output Current: 23mA
- Supply Current: 100uA
- Number of Circuits: 4
- Operating Temperature: -40°C~+85°C
- Current - Input Bias(Ib): 1pA
- Gain Bandwidth Product(GBP): 1MHz
- Package: PDIP-14
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tube
- Part Status: Active
- Amplifier Type: General Purpose
- Output Type: Rail-to-Rail
- Slew Rate: 0.6V/µs
- Gain Bandwidth Product: 1MHz
- Current - Input Bias: 1pA
- Voltage - Input Offset: 4.5mV
- Current - Supply: 100µA
- Current - Output / Channel: 23mA
- Voltage - Supply, Single/Dual (±): 1.8V ~ 6V
- Mounting Type: Through Hole
- Package / Case: 14-DIP (0.300", 7.62mm)
- Supplier Device Package: 14-PDIP
- Base Part Number: MCP6004
- detail: General Purpose Amplifier 4 Circuit Rail-to-Rail 14-PDIP
