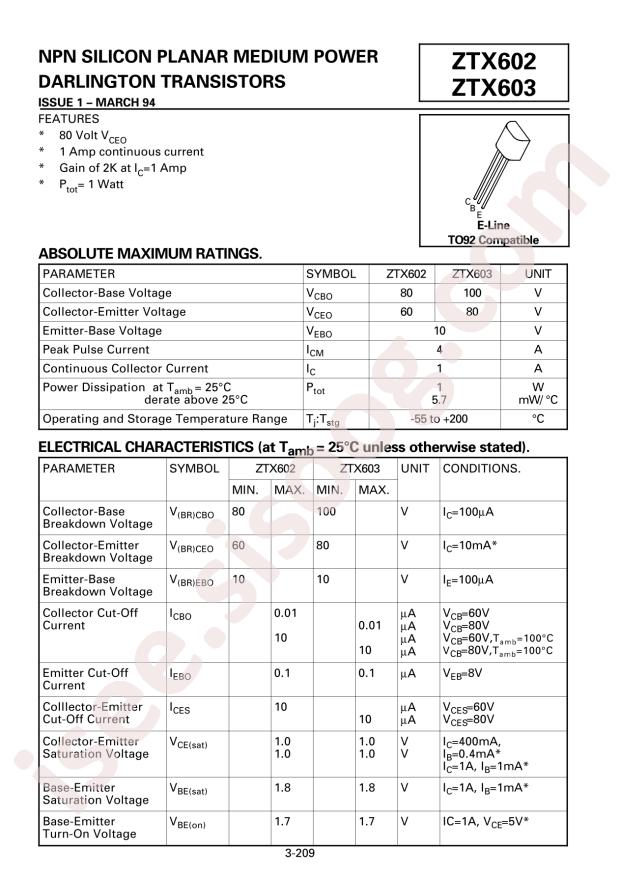

دیتاشیت ZTX603
مشخصات دیتاشیت
| نام دیتاشیت |
ZTX603
|
| حجم فایل |
93.744
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
3
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistors
-
Datasheet:
Diodes Incorporated ZTX603
-
Transistor Type:
NPN
-
Operating Temperature:
-55°C~+200°C@(Tj)
-
Collector Current (Ic):
1A
-
Power Dissipation (Pd):
1W
-
Transition frequency (fT):
150MHz
-
DC current gain (hFE@Vce,Ic):
2000@5V,1A
-
Collector-emitter voltage (Vceo):
80V
-
Collector cut-off current (Icbo@Vcb):
10uA
-
Collector-emitter saturation voltage (VCE(sat)@Ic,Ib):
1V@1A,1mA
-
Package:
TO-92-3
-
Manufacturer:
Diodes Incorporated
