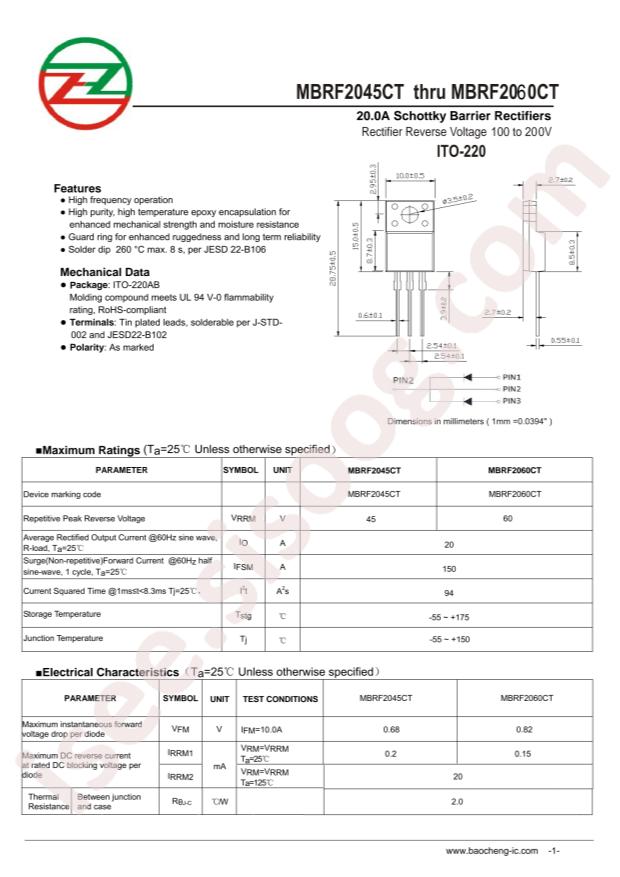

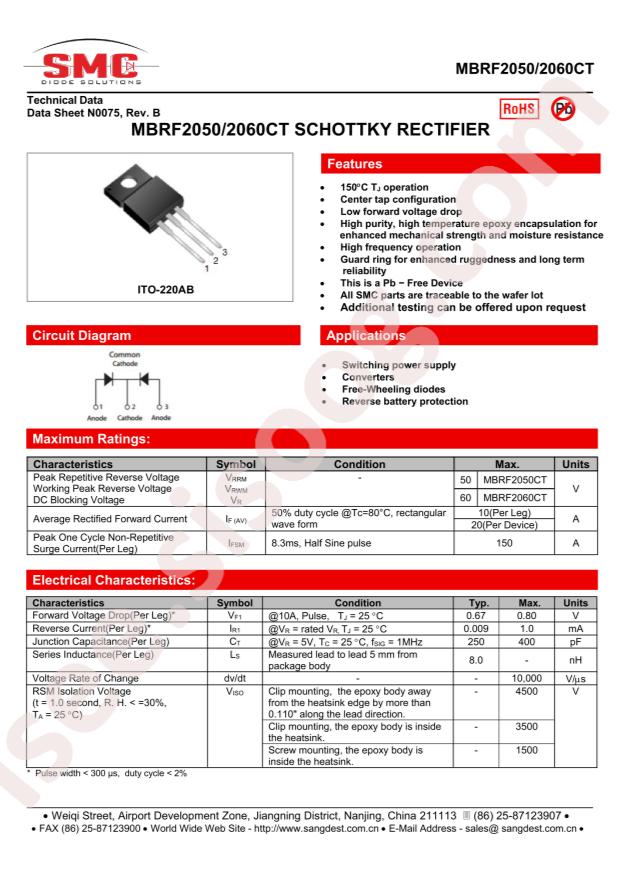

دیتاشیت MBRF2060CT
مشخصات دیتاشیت
| نام دیتاشیت |
MBRF2060CT
|
| حجم فایل |
180.696
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
MDD(Microdiode Electronics) MBRF2060CT
-
Reverse Voltage (Vr):
60V
-
Forward Voltage (Vf@If):
750mV@10A
-
Average Rectified Current (Io):
20A
-
Package:
ITO-220AB-3
-
Manufacturer:
MDD(Microdiode Electronics)
-
Diode Configuration:
Dual Common Cathode
-
Reverse Leakage Current (Ir):
200uA@60V
-
Series:
SWITCHMODE™
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
60V
-
Current - Average Rectified (Io) (per Diode):
10A
-
Voltage - Forward (Vf) (Max) @ If:
850mV @ 10A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
150µA @ 60V
-
Operating Temperature - Junction:
-65°C ~ 175°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3 Full Pack
-
Supplier Device Package:
TO-220FP
-
Base Part Number:
MBRF2060
-
detail:
Diode Array 1 Pair Common Cathode Schottky 60V 10A Through Hole TO-220-3 Full Pack
