技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/TVS
- Datasheet: Yint P6SMB6.8CA
- Breakdown Voltage: 6.45V
- Maximum Clamping Voltage: 10.5V
- Reverse Leakage Current (Ir): 800uA
- Reverse Stand-Off Voltage (Vrwm): 5.8V
- Peak Pulse Current (Ipp)@10/1000us: 58.1A

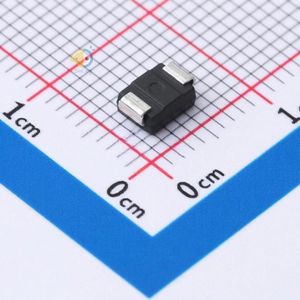

- Package: SMB(DO-214AA)
- Manufacturer: Yint
- Peak Pulse Power Dissipation (Ppp)@10/1000us: 600W
- Bidirectional Channels: 1
- Peak Pulse Current (Ipp)@10/1000μs: 57.14A
