دیتاشیت LM2577SX-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM1577, LM2577 |
|---|---|
| حجم فایل | 3824.956 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 40 |

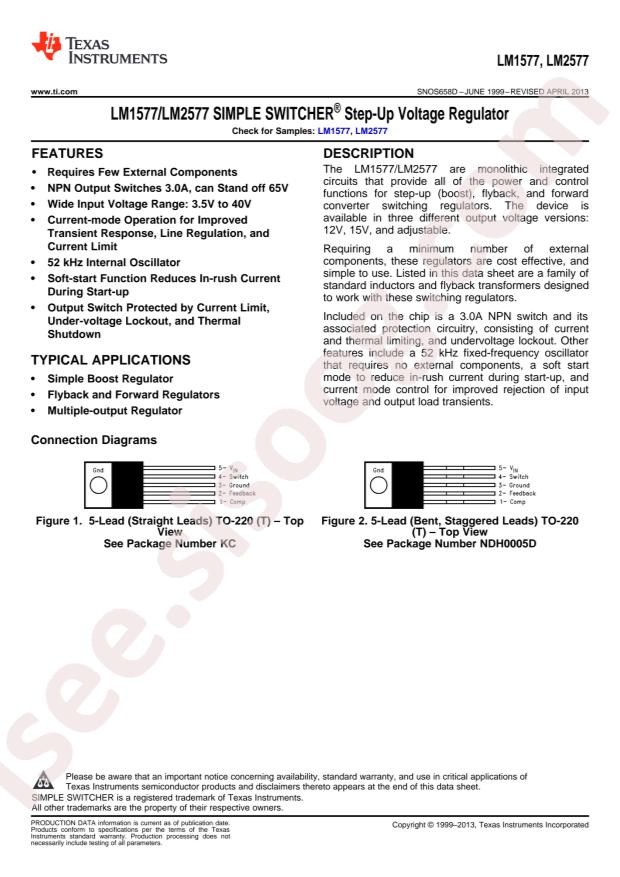

دانلود دیتاشیت LM1577, LM2577 |
LM1577, LM2577 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType;Buck-boost type
- Topology: Boost;Flyback;Forward
- Datasheet: Texas Instruments LM2577SX-ADJ/NOPB
- Output Type: Adjustable
- Input Voltage: 3.5V~40V
- Output Voltage: 1.23V~60V
- Number of Outputs: 1
- Switching Frequency: 52kHz
- Output Current (Max): 3A
- Operating Temperature: -40°C~+125°C@(TJ)
- Quiescent Current (Iq): -
- Synchronous Rectification: NO
- Package: TO-263-5
- Manufacturer: Texas Instruments
- Series: SIMPLE SWITCHER®
- Voltage - Input (Min): 3.5V
- Base Part Number: LM2577
- Current - Output: 3A (Switch)
- Frequency - Switching: 52kHz
- Part Status: Discontinued at Digi-Key
- Voltage - Input (Max): 40V
- Mounting Type: Surface Mount
- Supplier Device Package: DDPAK/TO-263-5
- Voltage - Output (Min/Fixed): 1.23V
- Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Voltage - Output (Max): 60V (Switch)
- Packaging: Cut Tape (CT)
- Output Configuration: Positive or Negative
- Synchronous Rectifier: No
- detail: Boost, Flyback, Forward Converter Switching Regulator IC Positive or Negative Adjustable 1.23V 1 Output 3A (Switch) TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
