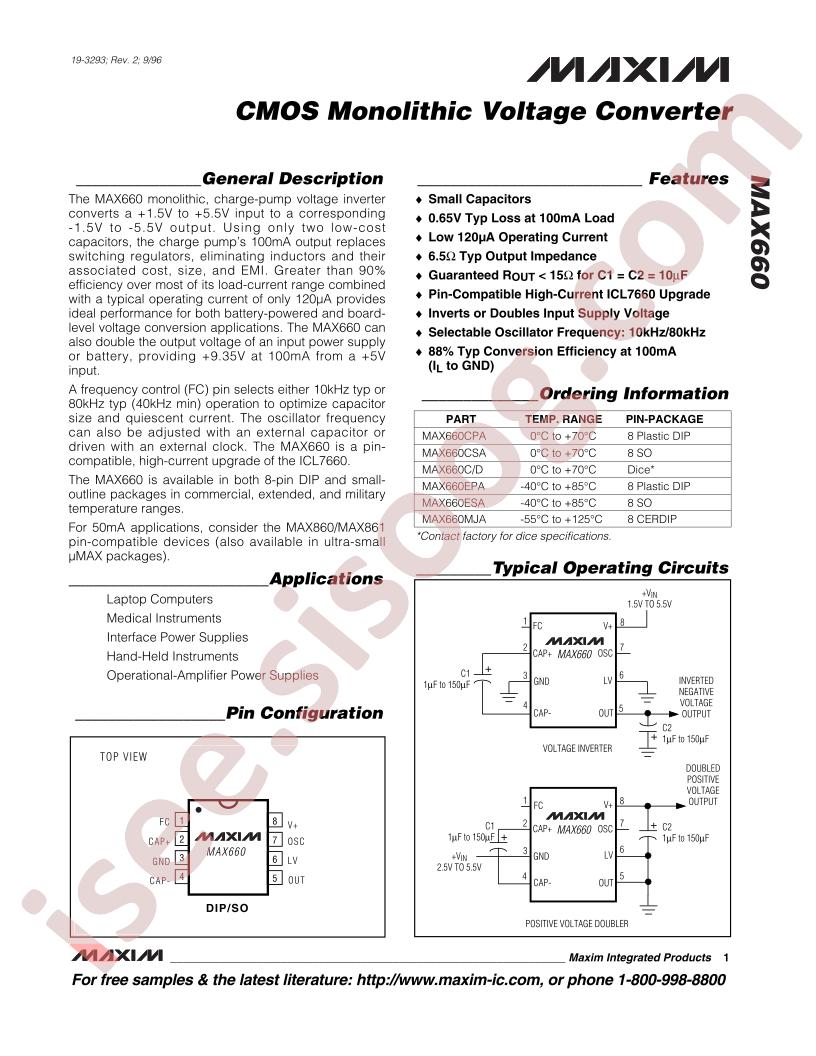

دیتاشیت MAX660ESA+T
مشخصات دیتاشیت
| نام دیتاشیت |
MAX660
|
| حجم فایل |
203.909
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
-
-
Topology:
-
-
Datasheet:
Analog Devices Inc./Maxim Integrated MAX660ESA+T
-
Output Type:
Fixed
-
Input Voltage:
1.5V~5.5V
-
Number of Outputs:
1
-
Switching Frequency:
10kHz;80kHz
-
Output Current (Max):
100mA
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
NO
-
Package:
SOP-8
-
Manufacturer:
Analog Devices Inc./Maxim Integrated
-
Voltage - Input (Max):
5.5V
-
Voltage - Input (Min):
1.5V
-
Output Configuration:
Positive or Negative
-
Supplier Device Package:
8-SOIC
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Frequency - Switching:
10kHz, 80kHz
-
Current - Output:
100mA
-
Part Status:
Active
-
Series:
-
-
Voltage - Output (Max):
-
-
Base Part Number:
MAX660
-
Mounting Type:
Surface Mount
-
Synchronous Rectifier:
No
-
Voltage - Output (Min/Fixed):
-Vin, 2Vin
-
Packaging:
Cut Tape (CT)
-
detail:
Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin 1 Output 100mA 8-SOIC (0.154", 3.90mm Width)
