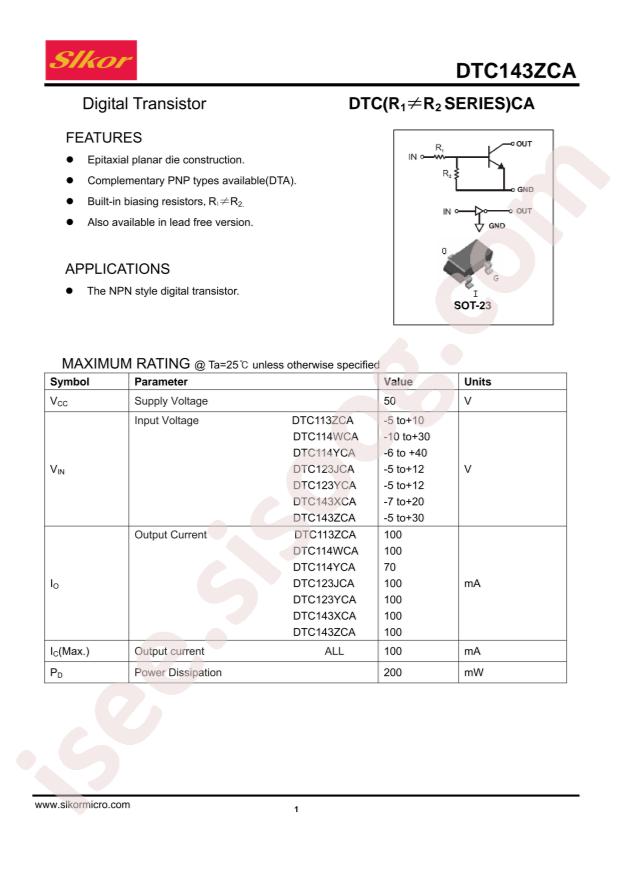

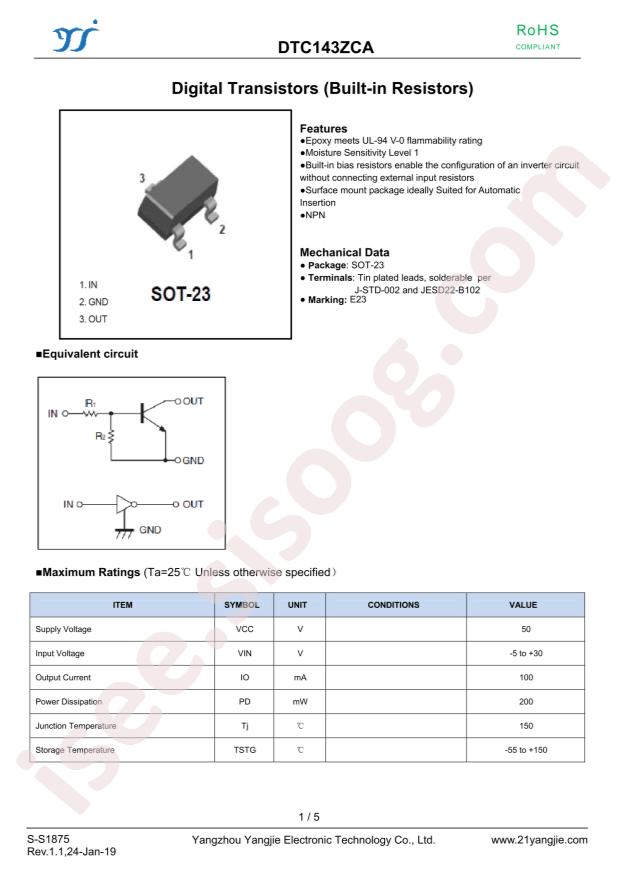

دیتاشیت DTC143ZCA
مشخصات دیتاشیت
| نام دیتاشیت |
DTC143ZCA
|
| حجم فایل |
54.306
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Digital Transistors
-
Datasheet:
Slkor(SLKORMICRO Elec.) DTC143ZCA
-
Input Resistor:
4.7kΩ
-
Resistor Ratio:
-
-
Transistor Type:
1 NPN - Pre Biased
-
Operating Temperature:
-50°C~+150°C@(Tj)
-
Collector Current (Ic):
-
-
Power Dissipation (Pd):
200mW
-
Transition Frequency (fT):
250MHz
-
DC Current Gain (hFE@Ic,Vce):
80@10mA,5V
-
Input Voltage (VI(on)@Ic,Vce):
1.3V@5mA,0.3V
-
Output Voltage (VO(on)@Io/Ii):
0.1V@5mA,0.25mA
-
Input Voltage (VI(off)@Ic,Vce):
0.5V@100uA,5V
-
Collector Cut-Off Current (Icbo):
-
-
Collector-Emitter Breakdown Voltage (Vceo):
-
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
-
-
Package:
SOT-23(TO-236)
-
Manufacturer:
Slkor(SLKORMICRO Elec.)
