QN9020/DY Datasheet
Datasheet specifications
| Datasheet's name | QN902x |
|---|---|
| File size | 704.401 KB |
| File type | |
| Number of pages | 44 |
Download Datasheet QN902x |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: NXP USA Inc.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Type: TxRx Only
- RF Family/Standard: Bluetooth
- Protocol: Bluetooth v4.0
- Modulation: -
- Frequency: 2.4GHz
- Data Rate (Max): -
- Power - Output: 4dBm
- Sensitivity: -95dBm
- Memory Size: 128kB Flash
- Serial Interfaces: I²C, SPI, UART
- GPIO: 31
- Voltage - Supply: 2.4V ~ 3.6V
- Current - Receiving: 9.2mA
- Current - Transmitting: 8.8mA
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount

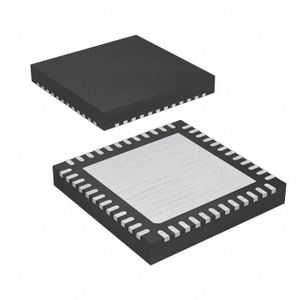

- Package / Case: 48-VFQFN Exposed Pad
- Supplier Device Package: 48-HVQFN (6x6)
- Base Part Number: QN902
- detail: IC RF TxRx Only Bluetooth Bluetooth v4.0 2.4GHz 48-VFQFN Exposed Pad
