دیتاشیت LM2576SX-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM2576(HV) |
|---|---|
| حجم فایل | 4361.759 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 44 |
دانلود دیتاشیت LM2576(HV) |

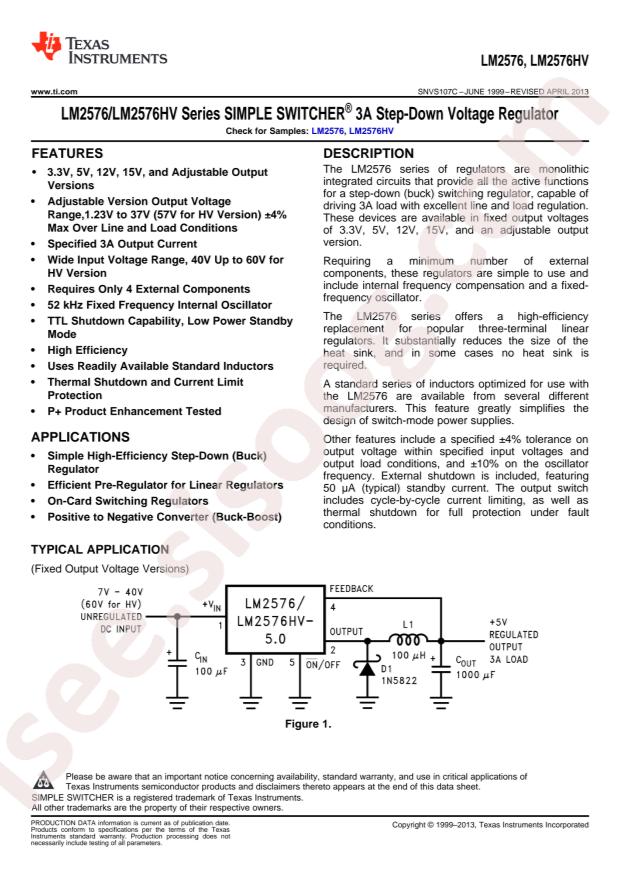

LM2576(HV) Datasheet |
|---|
مشخصات
- Topology: Buck
- Part Status: Active
- Current - Output: 3A

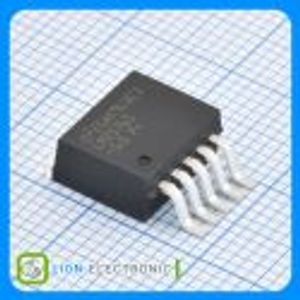

- Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Base Part Number: LM2576
- Synchronous Rectifier: No
- Series: SIMPLE SWITCHER®
- Number of Outputs: 1
- Voltage - Input (Min): 4V
- Voltage - Output (Min/Fixed): 1.23V
- Voltage - Output (Max): 37V
- Mounting Type: Surface Mount
- Frequency - Switching: 52kHz
- Manufacturer: Texas Instruments
- Packaging: Cut Tape (CT)
- Function: Step-Down
- Output Type: Adjustable
- Output Configuration: Positive
- Supplier Device Package: DDPAK/TO-263-5
- Operating Temperature: -40°C ~ 125°C (TJ)
- Voltage - Input (Max): 40V
- detail: Buck Switching Regulator IC Positive Adjustable 1.23V 1 Output 3A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
