- Datasheet LM2596

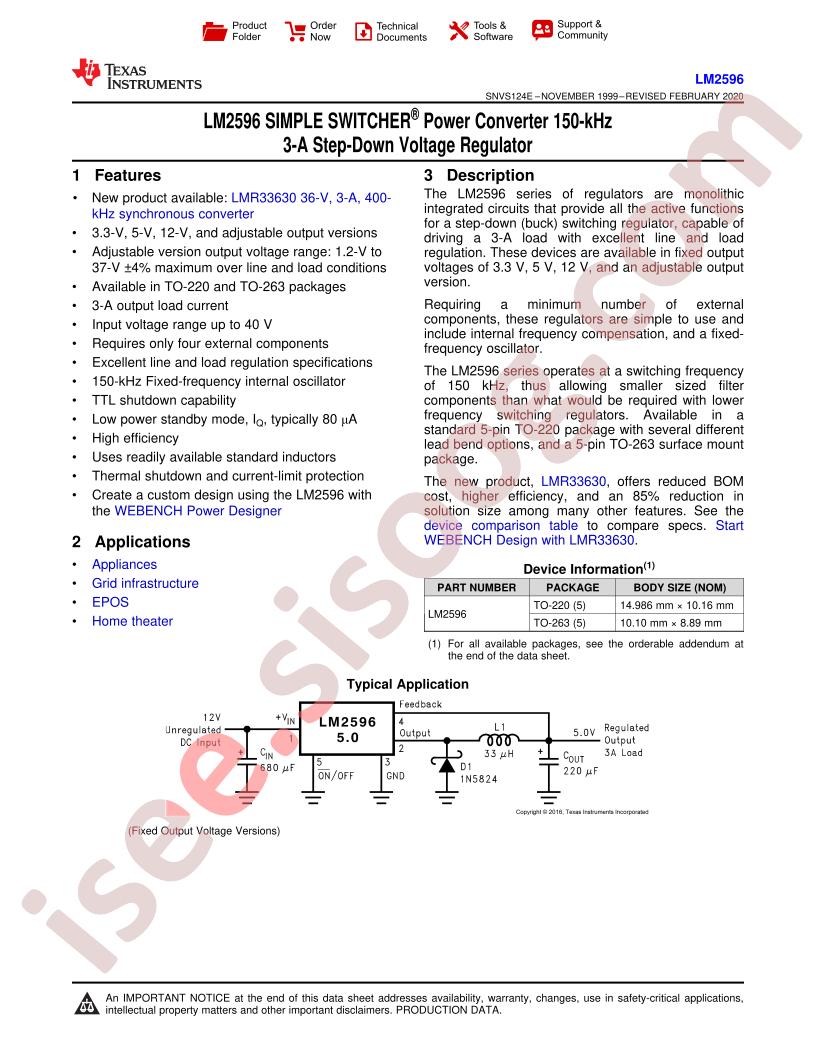

LM2596SX-ADJ Datasheet
Datasheet specifications
| Datasheet's name | LM2596 |
|---|---|
| File size | 5250.383 KB |
| File type | |
| Number of pages | 46 |
Download Datasheet LM2596 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Series: SIMPLE SWITCHER®
- Topology: Buck
- Voltage - Input (Min): 4.5V
- Base Part Number: LM2596
- Function: Step-Down
- Current - Output: 3A
- Frequency - Switching: 150kHz
- Part Status: Not For New Designs
- Voltage - Input (Max): 40V
- Mounting Type: Surface Mount
- Supplier Device Package: DDPAK/TO-263-5
- Operating Temperature: -40°C ~ 125°C (TJ)
- Voltage - Output (Min/Fixed): 1.2V
- Manufacturer: Texas Instruments
- Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Voltage - Output (Max): 37V
- Packaging: Tape & Reel (TR)
- Output Configuration: Positive
- Synchronous Rectifier: No
- Output Type: Adjustable
- Number of Outputs: 1
- detail: Buck Switching Regulator IC Positive Adjustable 1.2V 1 Output 3A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
