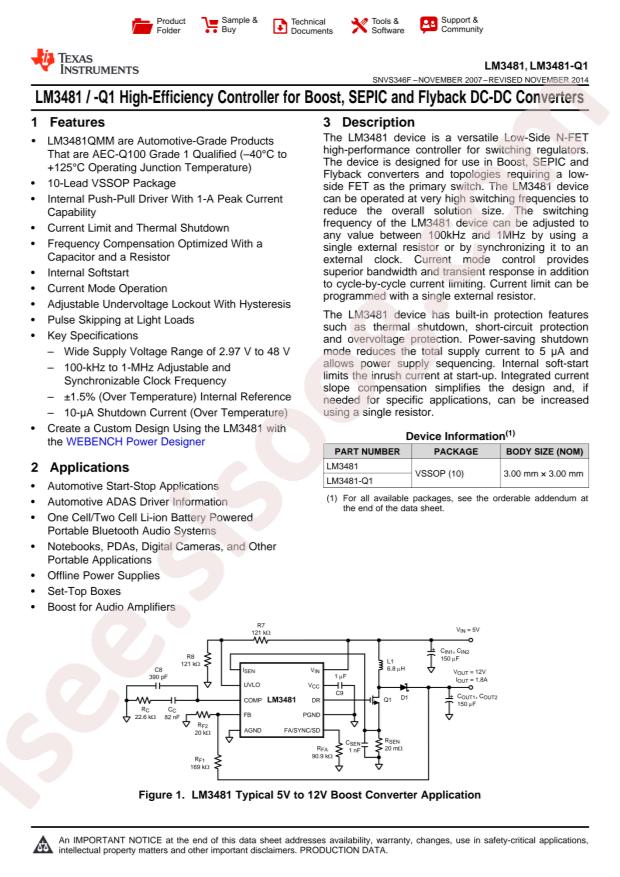

دیتاشیت LM3481MM/NOPB

مشخصات دیتاشیت

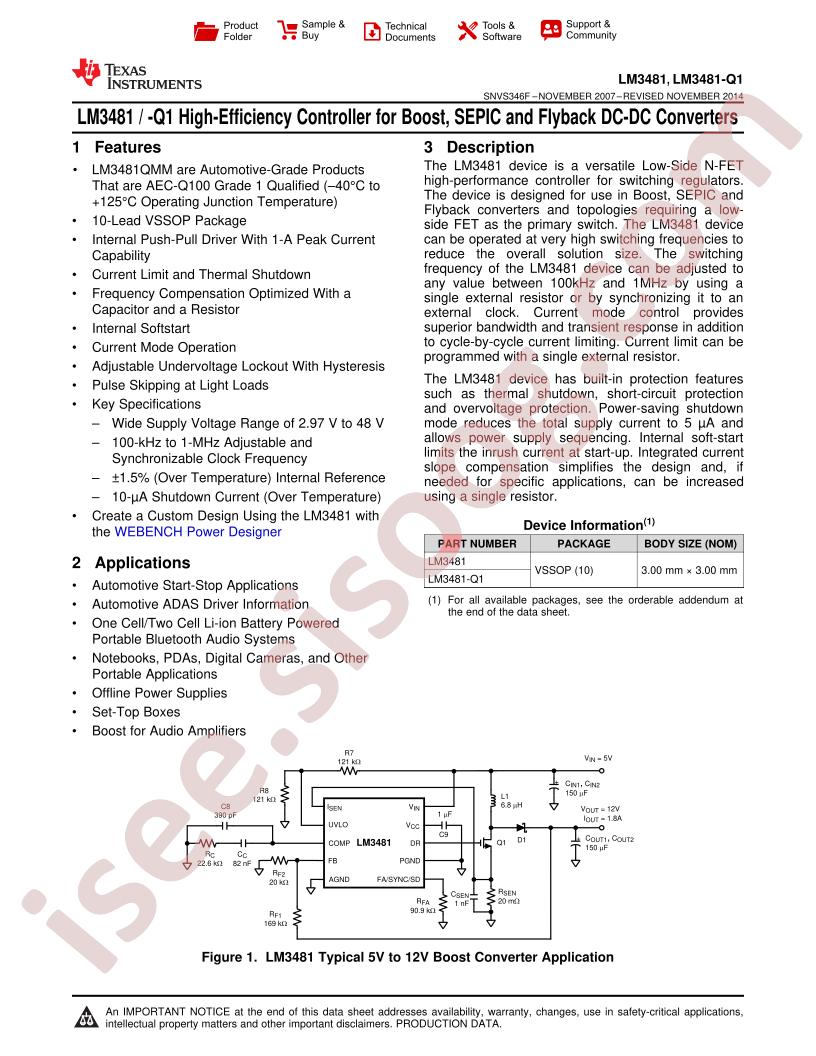

دانلود دیتاشیت LM3481, LM3481-Q1 Datasheet	LM3481, LM3481-Q1 Datasheet Datasheet

Duty Cycle (Max): 85%
Number of Outputs: 1
Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Control Features: Enable, Frequency Control, Ramp, Soft Start
Operating Temperature: -40°C ~ 125°C (TJ)
Output Configuration: Positive
Packaging: Cut Tape (CT)
Supplier Device Package: 10-VSSOP
Part Status: Active
Manufacturer: Texas Instruments
Base Part Number: LM3481
Output Type: Transistor Driver
Output Phases: 1
Synchronous Rectifier: No
Topology: Boost, Flyback, SEPIC
Voltage - Supply (Vcc/Vdd): 2.97V ~ 48V
Frequency - Switching: 100kHz ~ 1MHz
Function: Step-Up, Step-Up/Step-Down
Series: -
Mounting Type: Surface Mount
Clock Sync: Yes
Serial Interfaces: -
detail: Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-VSSOP
