دیتاشیت LM3940IMP-3.3/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM3940 |
|---|---|
| حجم فایل | 2048.246 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت LM3940 |
LM3940 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)

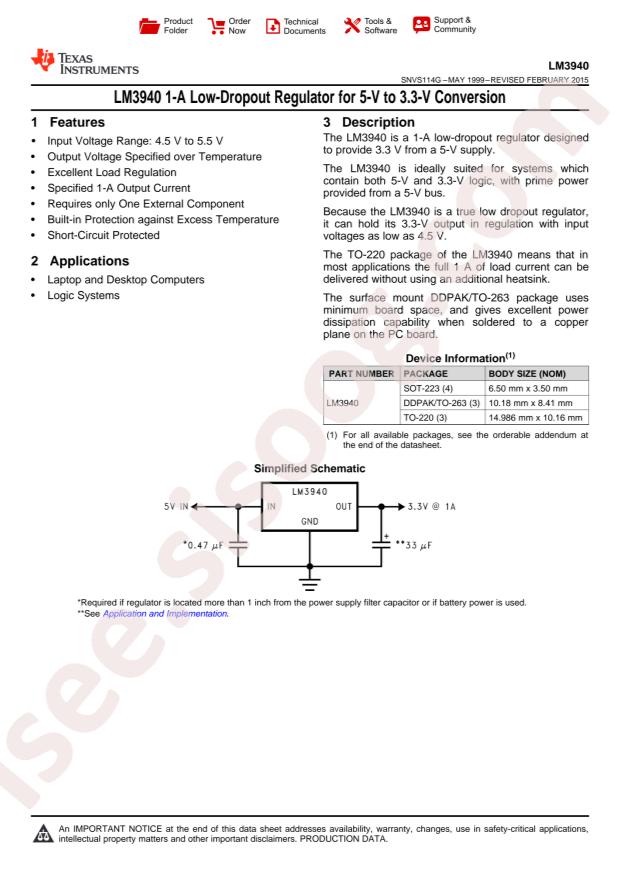

- Datasheet: Texas Instruments LM3940IMP-3.3/NOPB
- Output Type: Fixed
- Output Current: 1A
- Output Voltage: 3.3V
- Dropout Voltage: 200mV@(100mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 7.5V
- Operating Temperature: -40°C~+125°C
- Power Supply Rejection Ratio (PSRR): -
- Package: SOT-223
- Manufacturer: Texas Instruments
- Base Part Number: LM3940
- Supplier Device Package: SOT-223-4
- Voltage - Output (Max): -
- Output Configuration: Positive
- PSRR: -
- Voltage Dropout (Max): 0.2V @ 100mA
- Number of Regulators: 1
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 3.3V
- Protection Features: Over Temperature, Short Circuit
- Series: -
- Voltage - Input (Max): 7.5V
- Current - Output: 1A
- Part Status: Not For New Designs
- Package / Case: TO-261-4, TO-261AA
- Control Features: -
- detail: Linear Voltage Regulator IC 1 Output 1A SOT-223-4
