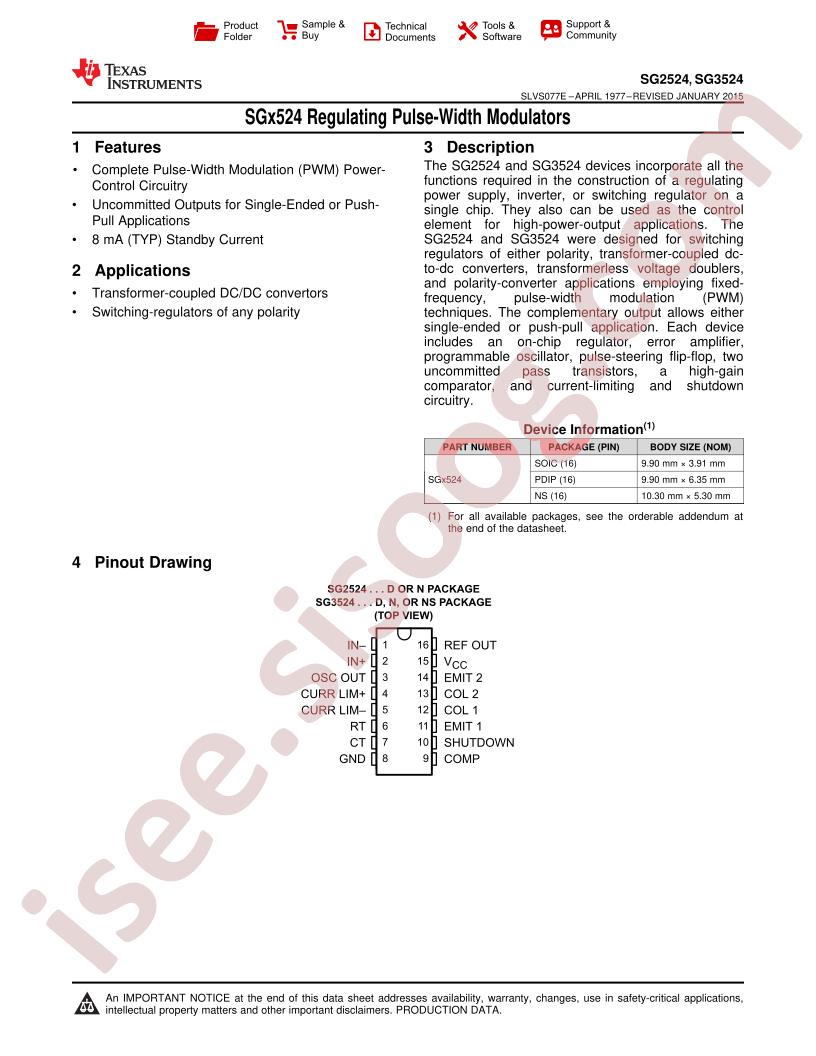

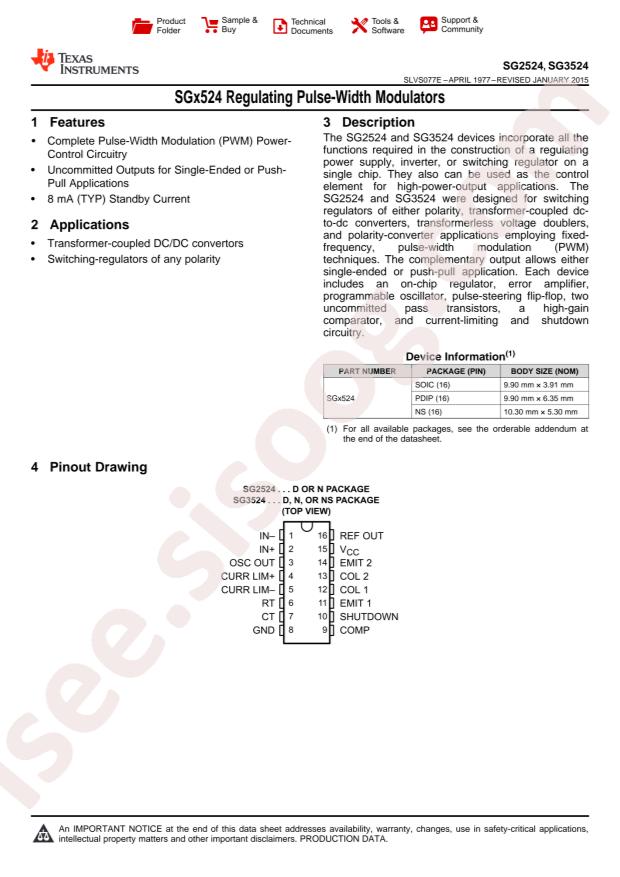

دیتاشیت SG3524DR
مشخصات دیتاشیت
| نام دیتاشیت |
SG2524, SG3524
|
| حجم فایل |
1523.433
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
29
|
مشخصات
-
Part Status:
Active
-
Package / Case:
16-SOIC (0.154", 3.90mm Width)
-
Packaging:
Cut Tape (CT)
-
Topology:
Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
-
Frequency - Switching:
450kHz
-
Supplier Device Package:
16-SOIC
-
Number of Outputs:
2
-
Serial Interfaces:
-
-
Manufacturer:
Texas Instruments
-
Synchronous Rectifier:
No
-
Function:
Step-Up, Step-Down, Step-Up/Step-Down
-
Clock Sync:
No
-
Operating Temperature:
0°C ~ 70°C (TA)
-
Mounting Type:
Surface Mount
-
Output Configuration:
Positive, Isolation Capable
-
Base Part Number:
SG352
-
Series:
-
-
Output Type:
Transistor Driver
-
Control Features:
Current Limit, Frequency Control
-
Output Phases:
1
-
Duty Cycle (Max):
45%
-
Voltage - Supply (Vcc/Vdd):
8V ~ 40V
-
detail:
Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive, Isolation Capable Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-SOIC
