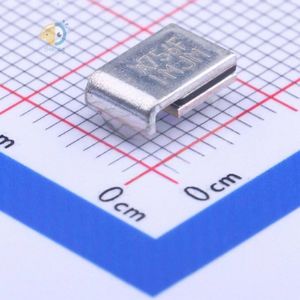

SMD075F/60-2 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/Resettable Fuses
- Datasheet: Littelfuse SMD075F/60-2
- Hold Current: 750mA
- Trip Current: 1.5A
- Power Dissipation: 1.7W
- Current Rating (Max): 10A
- Maximum Time to Trip: 300ms
- Operating Temperature: -40°C~+85°C
- Operating Voltage (Max): 60V
- Resistance - Initial (Ri) (Min): 350mΩ
- Resistance - Post Trip (R1) (Max): 0.35Ω
- Package: SMD
- Manufacturer: Littelfuse
