AD744JR* Datasheet

AD744 Series

Datasheet specifications

Datasheet's name AD744 Series
File size 515.62 KB
File type pdf
Number of pages 15

Download Datasheet AD744 Series

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Amplifier Type: J-FET
  • Number of Circuits: 1
  • Output Type: -
  • Slew Rate: 75V/µs
  • -3db Bandwidth: 13MHz
  • Current - Input Bias: 30pA
  • Voltage - Input Offset: 300µV
  • Current - Supply: 3.5mA
  • Current - Output / Channel: 25mA
  • Voltage - Supply, Single/Dual (±): ±4.5V ~ 18V
  • Operating Temperature: 0°C ~ 70°C
  • Mounting Type: Surface Mount

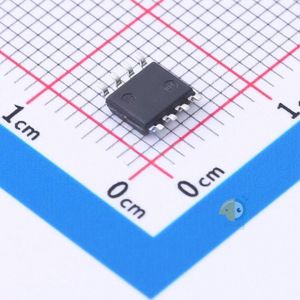

  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: AD744
  • detail: J-FET Amplifier 1 Circuit 8-SOIC
