دیتاشیت ADP1614ACPZ-1.3-R7
مشخصات دیتاشیت
| نام دیتاشیت | ADP1614 |
|---|---|
| حجم فایل | 512.026 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت ADP1614 |

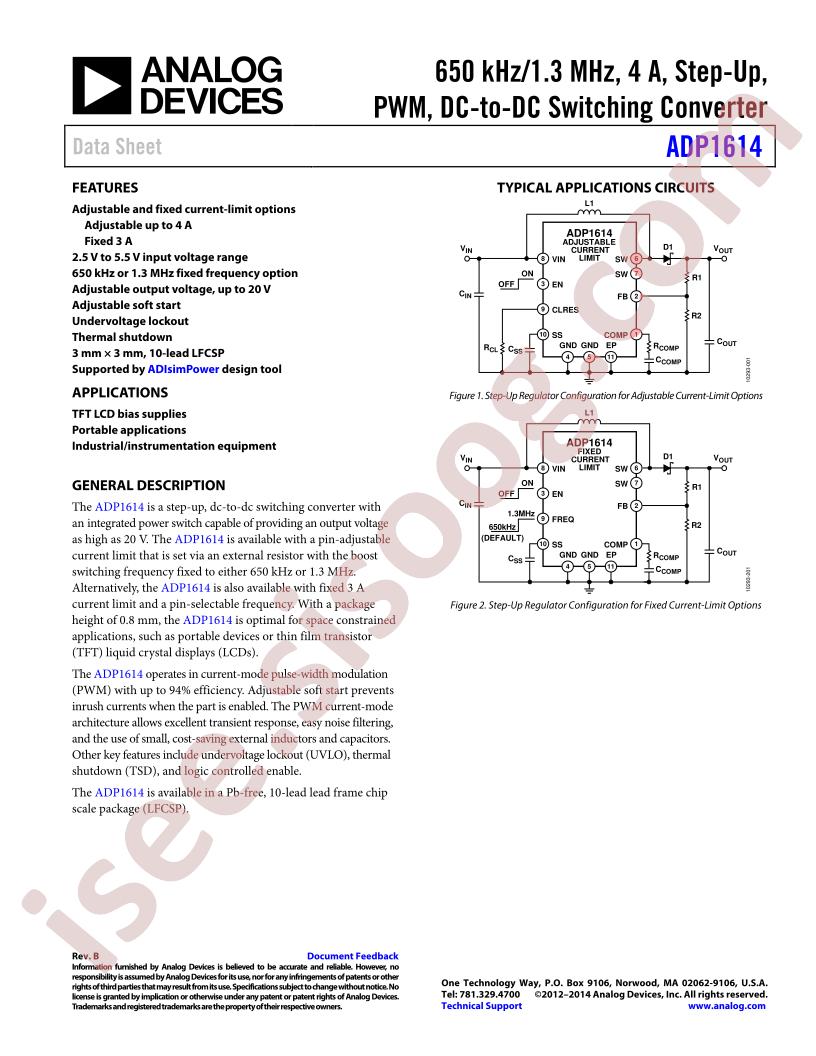

ADP1614 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType
- Topology: Boost
- Datasheet: Analog Devices ADP1614ACPZ-1.3-R7
- Output Type: Adjustable
- Input Voltage: 2.5V~5.5V
- Output Voltage: 2.5V~20V
- Number of Outputs: 1
- Switching Frequency: 1.3MHz
- Output Current (Max): 4A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: LFCSP-10-WD(3x3)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.5V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 2.5V
- Voltage - Output (Max): 20V
- Current - Output: 4A (Switch)
- Frequency - Switching: 1.3MHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 10-VFDFN Exposed Pad, CSP
- Supplier Device Package: 10-LFCSP-WD (3x3)
- Base Part Number: ADP1614
- detail: Boost Switching Regulator IC Positive Adjustable 2.5V 1 Output 4A (Switch) 10-VFDFN Exposed Pad, CSP
