دیتاشیت 1N5406G

1N5406G

مشخصات دیتاشیت

نام دیتاشیت 1N5406G
حجم فایل 61.724 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت 1N5406G

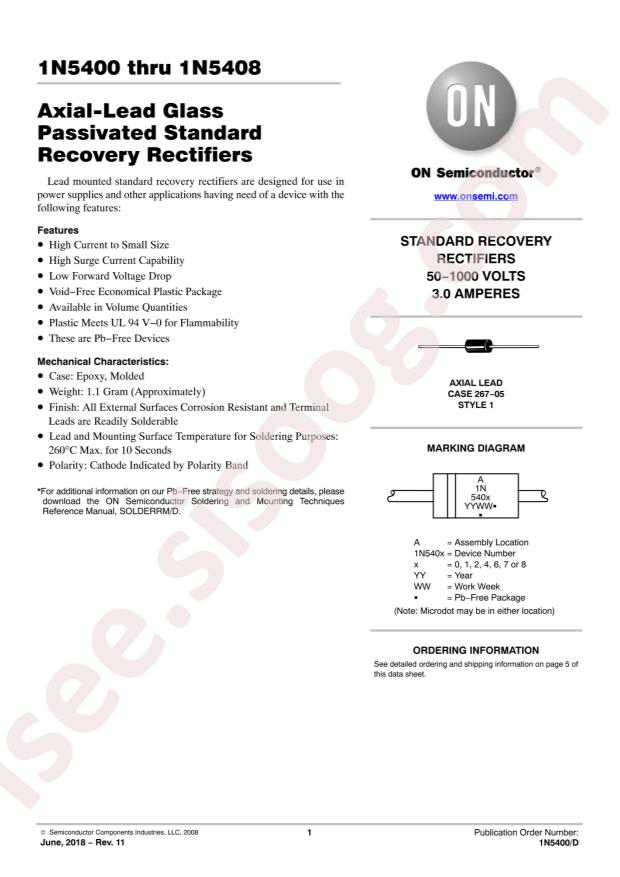

1N5406G Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Diodes - General Purpose
  • Datasheet: onsemi 1N5406G
  • Diode Configuration: -
  • Reverse Voltage (Vr): 600V
  • Forward Voltage (Vf@If): 1V@3A
  • Reverse Leakage Current: 10uA@600V
  • Average Rectified Current (Io): 3A
  • Package: DO-27
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 600V
  • Current - Average Rectified (Io): 3A
  • Voltage - Forward (Vf) (Max) @ If: 1.2V @ 3A
  • Speed: Standard Recovery >500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 5µA @ 600V
  • Capacitance @ Vr, F: 30pF @ 4V, 1MHz
  • Mounting Type: Through Hole
  • Package / Case: DO-201AD, Axial
  • Supplier Device Package: DO-201AD
  • Operating Temperature - Junction: -55°C ~ 150°C
  • Base Part Number: 1N5406
  • detail: Diode Standard 600V 3A Through Hole DO-201AD
