- دیتاشیت ESD5Z6.0T1G

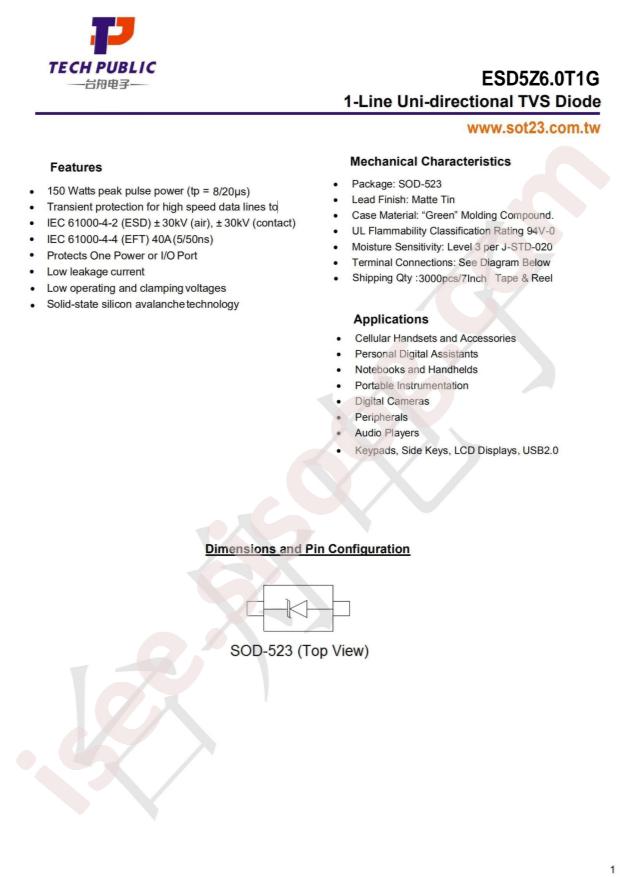

ESD5Z6.0T1G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | ESD5Z6.0T1G |
|---|---|
| حجم فایل | 51.766 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 4 |
دانلود دیتاشیت ESD5Z6.0T1G |
دانلود دیتاشیت |
|---|
سایر مستندات
ESD5Z2.5T1G, SZESD5Z2.5T1G Series 5 pages
ESD5Z5.0T1G 5 pages
مشخصات فنی
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Datasheet: TECH PUBLIC ESD5Z6.0T1G
- Package: SOD-523
- Manufacturer: TECH PUBLIC
- Polarity: Unidirectional
- Clamping Voltage@Ipp: 20.5V
- Operating Temperature: -55°C~+150°C@(Tj)
- Breakdown Voltage (VBR): 6.8V
- Peak Pulse Power(Ppp)@8/20us: 181W
- Junction Capacitance(Cj)@1MHz: 70pF@1MHz
- Peak Pulse Current(Ipp)@8/20us: 8.8A
- Reverse Stand-Off Voltage (Vrwm): 6V
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Obsolete
- Type: Zener
- Unidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 6V (Max)
- Voltage - Breakdown (Min): 6.8V
- Voltage - Clamping (Max) @ Ipp: 20.5V
- Current - Peak Pulse (10/1000µs): 8.8A (8/20µs)
- Power - Peak Pulse: 181W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 70pF @ 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
- Base Part Number: ESD5
- detail: 20.5V Clamp 8.8A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
