دیتاشیت HGTG30N60A4D*

HGTG30N60A4D

مشخصات دیتاشیت

نام دیتاشیت HGTG30N60A4D
حجم فایل 400.5 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت HGTG30N60A4D

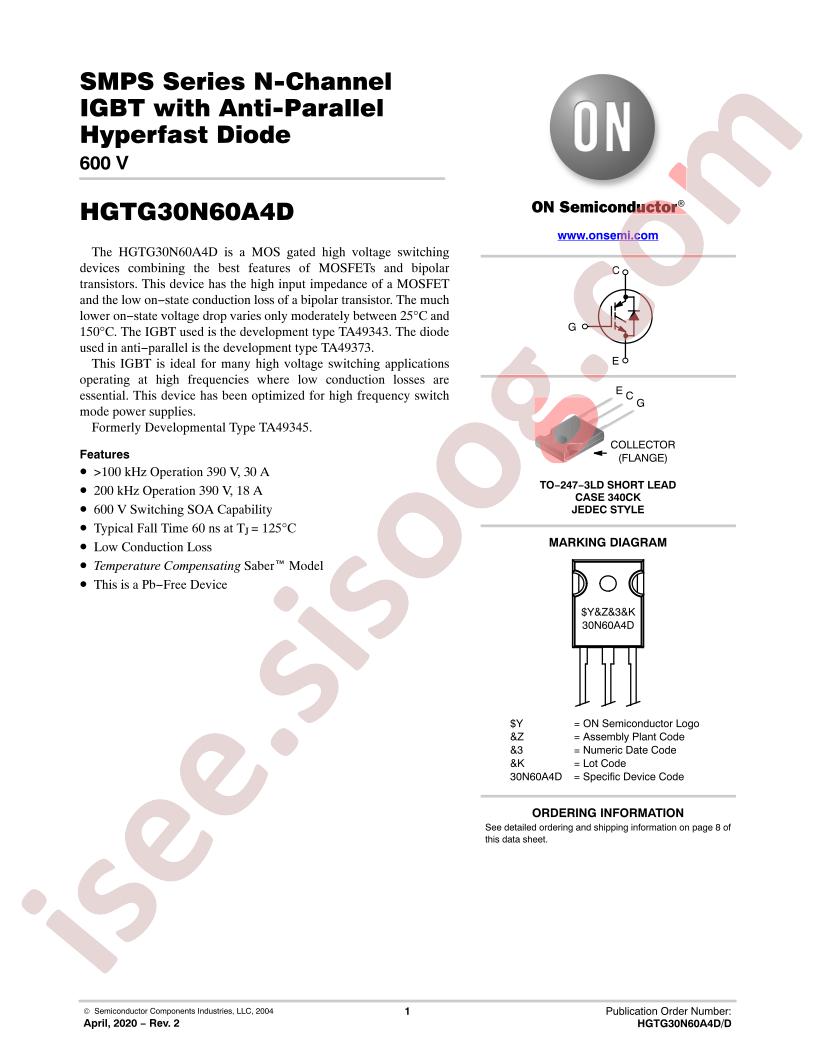

HGTG30N60A4D Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tube
  • Part Status: Not For New Designs
  • IGBT Type: -
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 75A
  • Current - Collector Pulsed (Icm): 240A
  • Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 30A
  • Power - Max: 463W
  • Switching Energy: 280µJ (on), 240µJ (off)
  • Input Type: Standard
  • Gate Charge: 225nC
  • Td (on/off) @ 25°C: 25ns/150ns
  • Test Condition: 390V, 30A, 3Ohm, 15V
  • Reverse Recovery Time (trr): 55ns
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247-3
  • Base Part Number: HGTG30N60
  • detail: IGBT 600V 75A 463W Through Hole TO-247-3
