دیتاشیت CD74HC4053PWR

مشخصات دیتاشیت

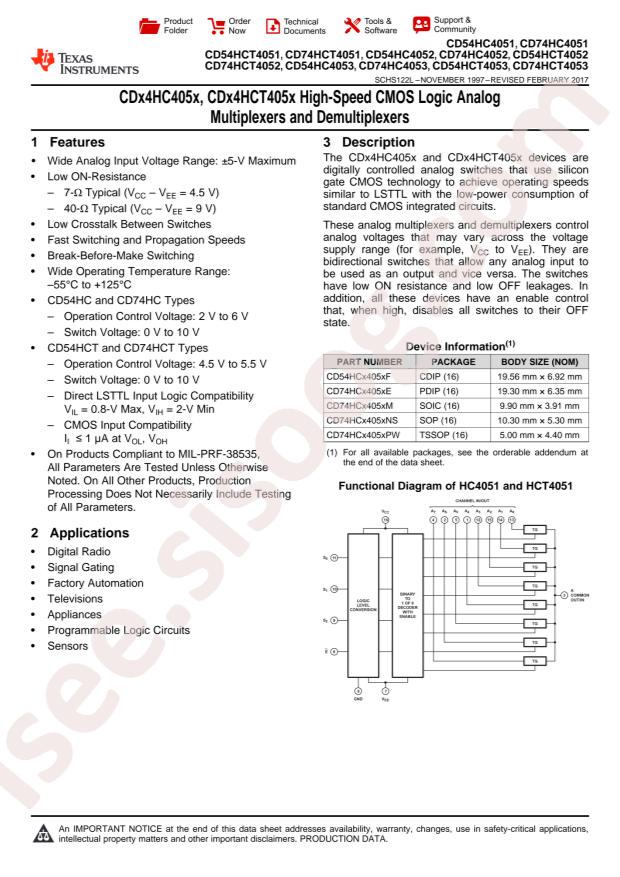

دانلود دیتاشیت CDx4HC405x, CDx4HCT405x	CDx4HC405x, CDx4HCT405x Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments CD74HC4053PWR
Supply Voltage: 2V~6V
Switch Circuit: SPDT(SPDT)
Number of Channels: 3
On-State Resistance (Max): 130Ω
Package: TSSOP-16
Manufacturer: Texas Instruments
Package / Case: 16-TSSOP (0.173", 4.40mm Width)
Series: -
Switch Time (Ton, Toff) (Max): -
Supplier Device Package: 16-TSSOP
Channel Capacitance (CS(off), CD(off)): 8pF
Number of Circuits: 3
Channel-to-Channel Matching (ΔRon): 5Ohm
-3db Bandwidth: 200MHz
Charge Injection: -
Multiplexer/Demultiplexer Circuit: 2:1
Packaging: Cut Tape (CT)
Voltage - Supply, Single (V+): 2V ~ 6V
Voltage - Supply, Dual (V±): ±1V ~ 5V
Base Part Number: 74HC4053
Operating Temperature: -55°C ~ 125°C (TA)
Mounting Type: Surface Mount
Current - Leakage (IS(off)) (Max): 100nA
Crosstalk: -
Part Status: Active
detail: 3 Circuit IC Switch 2:1 130Ohm 16-TSSOP
