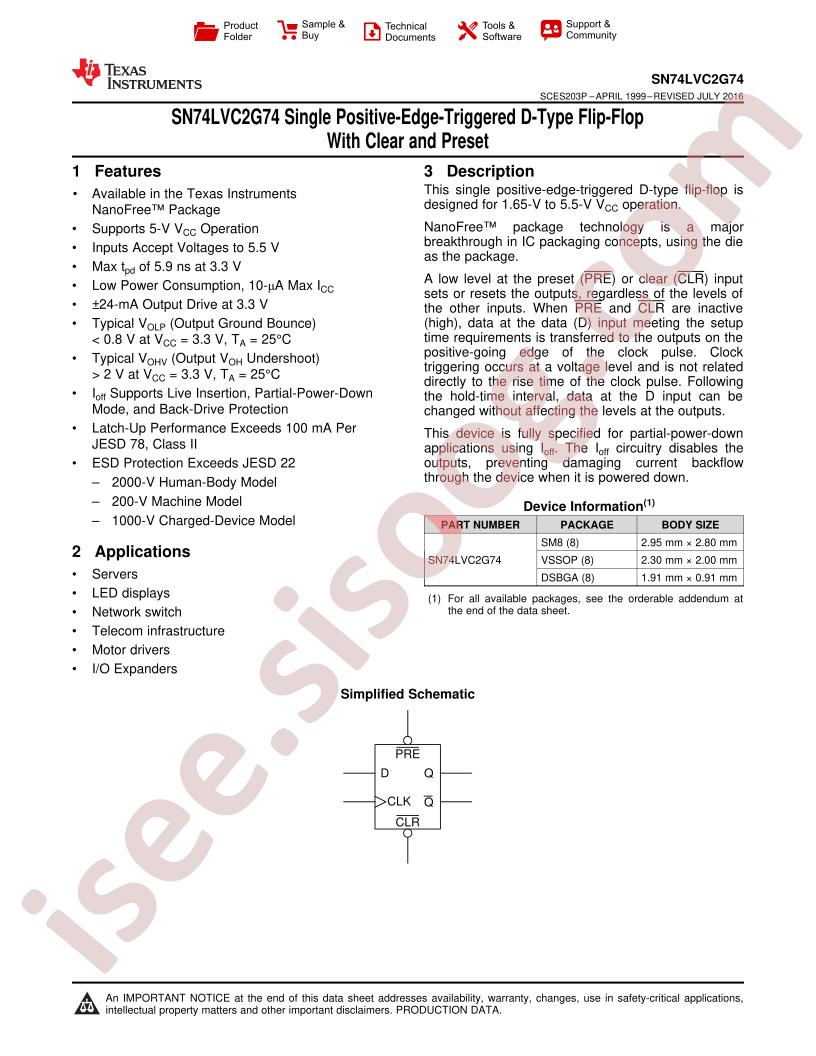

SN74LVC2G74DCUR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74LVC2G74DCUR
|
|
حجم فایل
|
90.802
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
18
|
مشخصات فنی
-
RoHS:
true
-
Type:
D-Type
-
Series:
74LVC
-
Category:
Logic ICs/Flip Flops
-
Function:
置位和复位
-
Datasheet:
Texas Instruments SN74LVC2G74DCUR
-
Output Type:
互补型
-
Sink Current:
32mA
-
Trigger Type:
上升沿
-
Source Current:
32mA
-
Supply Voltage:
1.65V~5.5V
-
Clock Frequency:
200MHz
-
Input Capacitance:
5pF
-
Number of Elements:
1
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Iq):
10uA
-
Maximum Propagation Delay:
4.4ns@5V,50pF
-
Number of Bits per Element:
1
-
Package:
VSSOP-8
-
Manufacturer:
Texas Instruments
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
SN74LVC2G
-
Voltage - Supply:
1.65V ~ 5.5V
-
Current - Quiescent (Iq):
10µA
-
Mounting Type:
Surface Mount
-
Max Propagation Delay @ V, Max CL:
4.4ns @ 5V, 50pF
-
Current - Output High, Low:
32mA, 32mA
-
Supplier Device Package:
8-VSSOP
-
Part Status:
Active
-
Package / Case:
8-VFSOP (0.091", 2.30mm Width)
-
detail:
Flip Flop 1 Element D-Type 1 Bit Positive Edge 8-VFSOP (0.091", 2.30mm Width)
