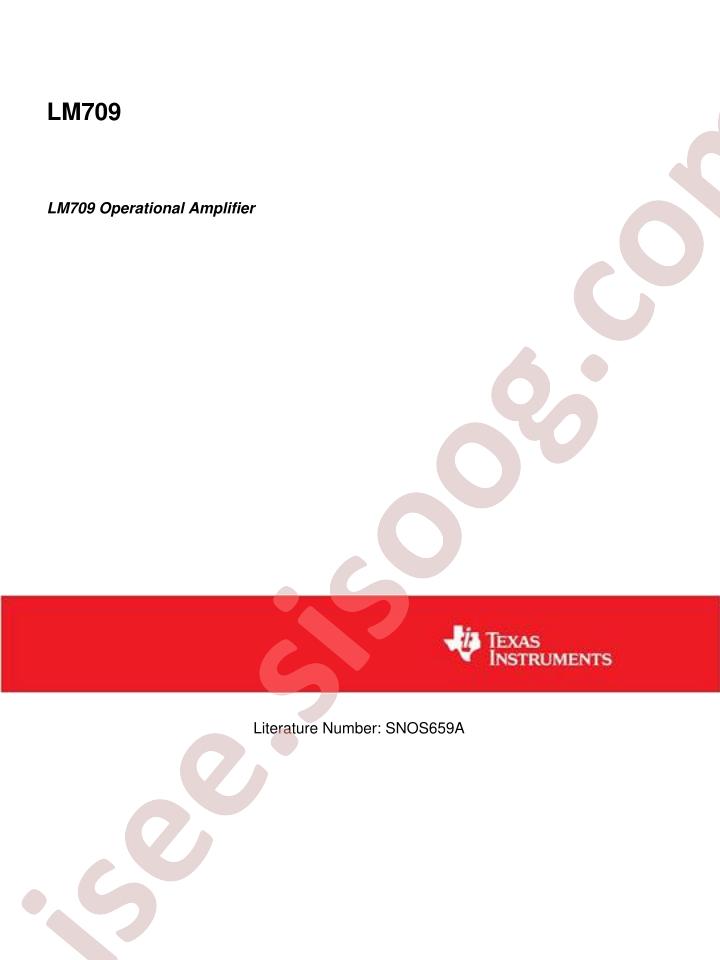

LM709H* Datasheet
Datasheet specifications
| Datasheet's name | LM709 |
|---|---|
| File size | 434.369 KB |
| File type | |
| Number of pages | 10 |
Download Datasheet LM709 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Series: -
- Package / Case: TO-205AA, TO-5-8 Metal Can
- Number of Circuits: 1
- Current - Supply: 2.6mA
- Voltage - Input Offset: 1mV
- Mounting Type: Through Hole
- Part Status: Obsolete
- Slew Rate: 0.25V/µs
- Voltage - Supply, Single/Dual (±): ±9V ~ 15V
- Operating Temperature: -55°C ~ 125°C
- Amplifier Type: General Purpose
- Manufacturer: Texas Instruments
- Packaging: Bulk
- Base Part Number: LM709
- Current - Input Bias: 200nA
- Output Type: -
- Supplier Device Package: TO-5-8
- detail: General Purpose Amplifier 1 Circuit TO-5-8
