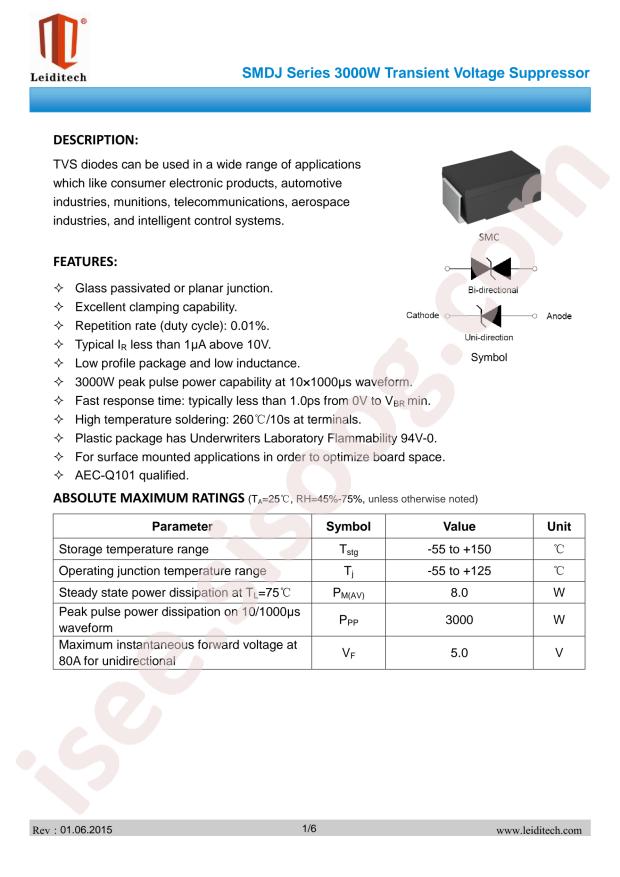

SMDJ15CA Datasheet
Datasheet specifications
|
Datasheet's name
|
SMDJ15CA
|
|
File size
|
76.917
KB
|
|
File type
|
pdf
|
|
Number of pages
|
6
|
Technical specifications
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/TVS
-
Datasheet:
MDD(Microdiode Electronics) SMDJ15CA
-
Package:
SMC(DO-214AB)
-
Manufacturer:
MDD(Microdiode Electronics)
-
Breakdown Voltage:
16.7V
-
Maximum Clamping Voltage:
24.4V
-
Reverse Leakage Current (Ir):
1uA
-
Reverse Stand-Off Voltage (Vrwm):
15V
-
Peak Pulse Current (Ipp)@10/1000us:
123A
-
Peak Pulse Power Dissipation (Ppp)@10/1000us:
3000W
-
Bidirectional Channels:
1
-
Peak Pulse Current (Ipp)@10/1000μs:
123A
-
Peak Pulse Power Dissipation (Ppp)@10/1000μs:
3kW
