دیتاشیت SN74LVC00APWR
مشخصات دیتاشیت
| نام دیتاشیت | SN54LVC00A, SN74LVC00A |
|---|---|
| حجم فایل | 1465.635 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 33 |
دانلود دیتاشیت SN54LVC00A, SN74LVC00A |

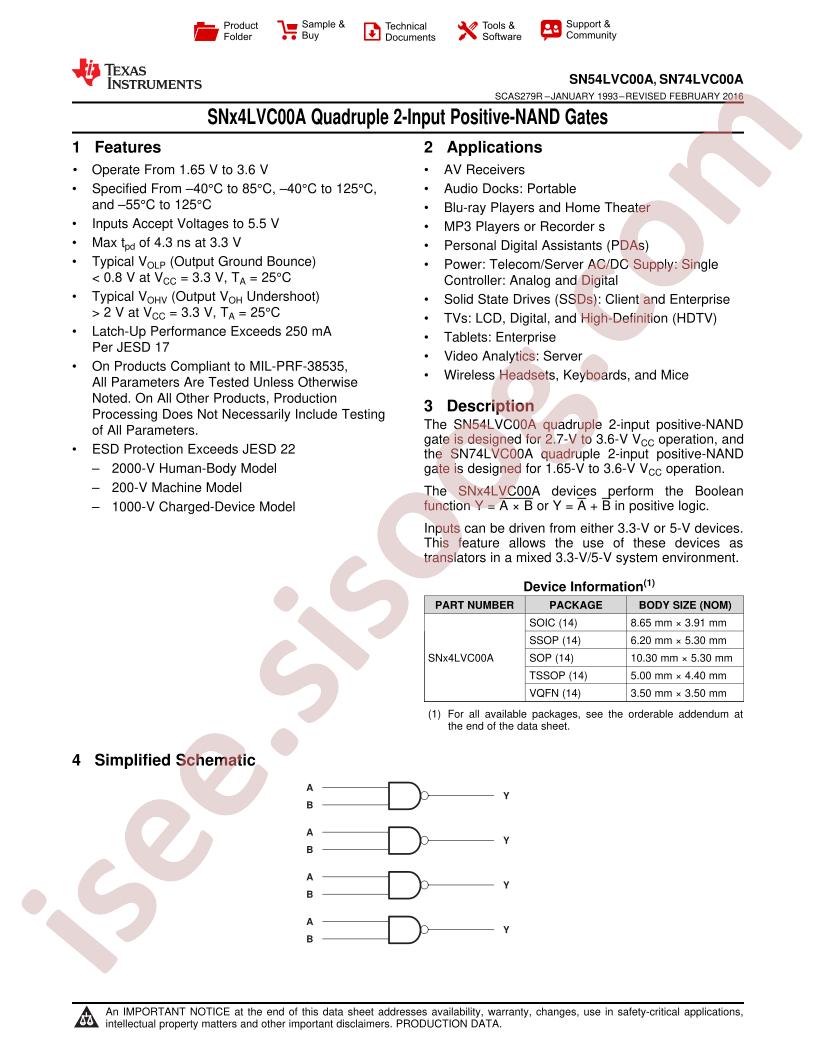

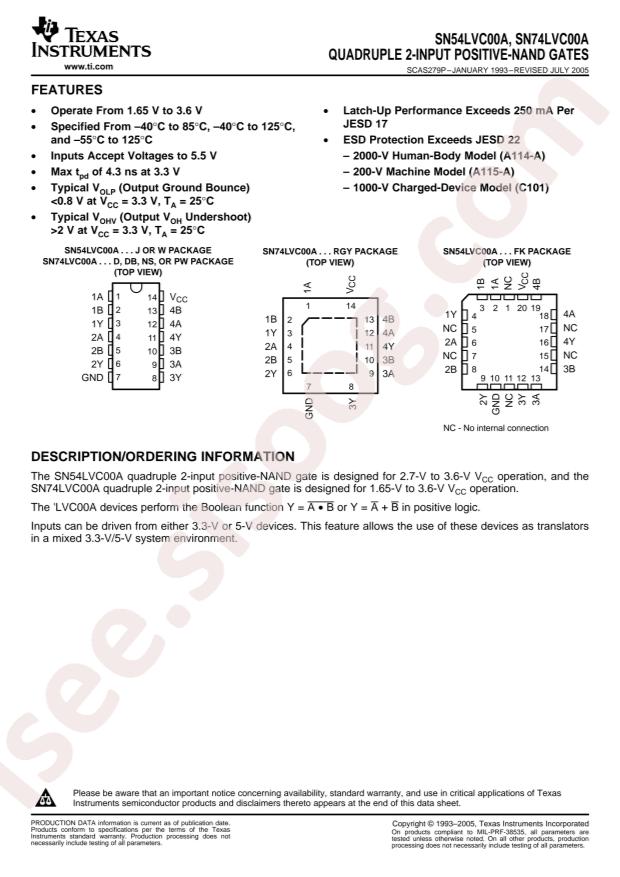

SN54LVC00A, SN74LVC00A Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LVC
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74LVC00APWR
- Sink Current: 24mA
- Source Current: 24mA
- Supply Voltage: 1.65V~3.6V
- Logic Gate Type: NAND Gates
- Number of Channels: 4
- Low Level Range (VIL): 0.7V~0.8V
- Operating Temperature: -40°C~+125°C
- High Level Range (VIH): 1.7V~2V
- Propagation Delay Time: 4.1ns@3.3V,50pF
- Quiescent Current (Max): 1uA
- Package: TSSOP-14
- Manufacturer: Texas Instruments
- Part Status: Active
- Max Propagation Delay @ V, Max CL: 4.1ns @ 3.3V, 50pF
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Logic Level - Low: 0.7V ~ 0.8V
- Current - Output High, Low: 24mA, 24mA
- Base Part Number: SN74LVC00
- Current - Quiescent (Max): 1µA
- Mounting Type: Surface Mount
- Number of Inputs: 2
- Voltage - Supply: 1.65V ~ 3.6V
- Number of Circuits: 4
- Packaging: Cut Tape (CT)
- Logic Type: NAND Gate
- Supplier Device Package: 14-TSSOP
- Features: -
- Logic Level - High: 1.7V ~ 2V
- detail: NAND Gate IC 4 Channel 14-TSSOP
