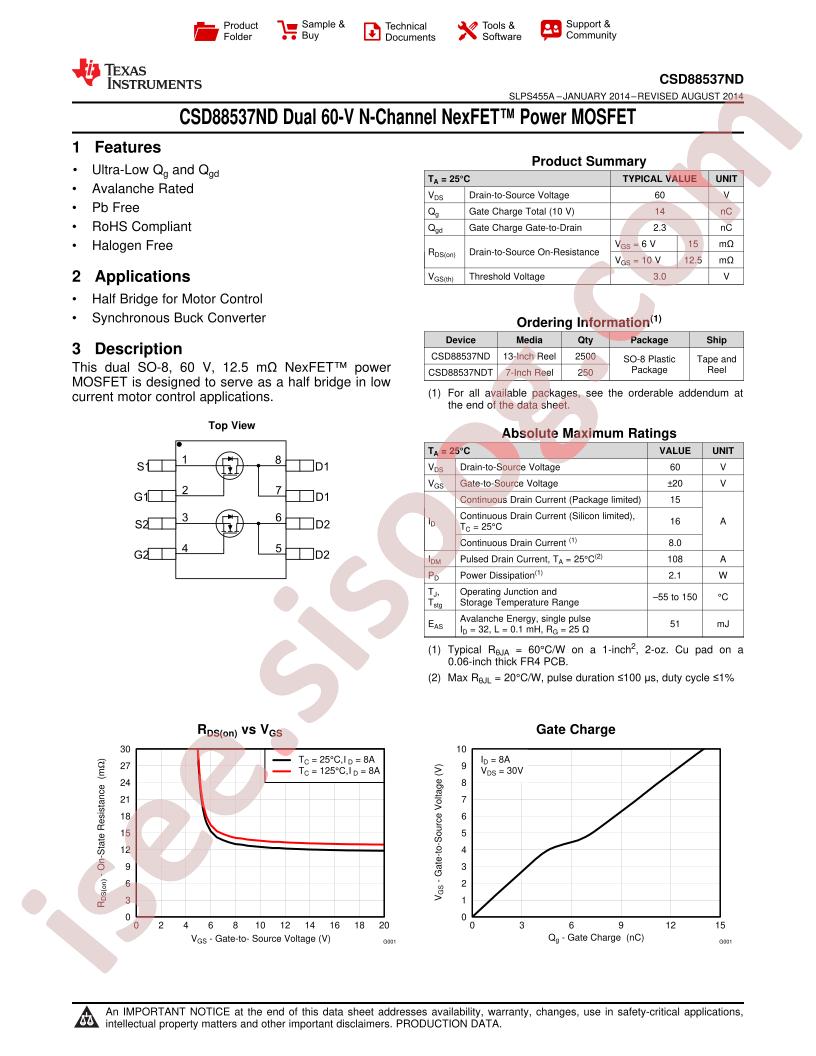

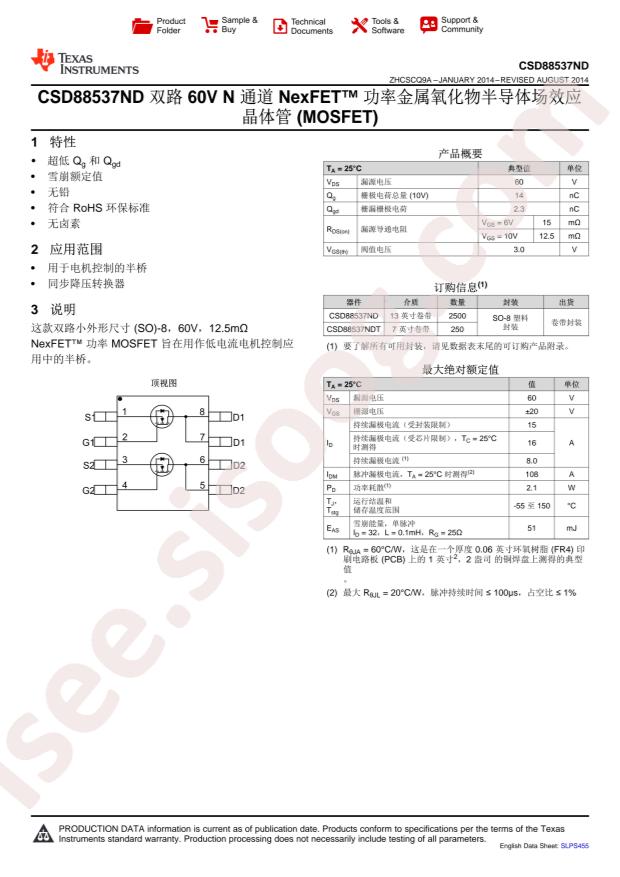

دیتاشیت CSD88537ND
مشخصات دیتاشیت
| نام دیتاشیت |
CSD88537ND
|
| حجم فایل |
455.623
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Type:
2 N-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Texas Instruments CSD88537ND
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2.1W
-
Total Gate Charge (Qg@Vgs):
18nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
1400pF@30V
-
Continuous Drain Current (Id):
15A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.6V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
15mΩ@10V,8A
-
Package:
SOP-8
-
Manufacturer:
Texas Instruments
-
Input Capacitance (Ciss) (Max) @ Vds:
1400pF @ 30V
-
Supplier Device Package:
8-SOIC
-
Packaging:
Cut Tape (CT)
-
Mounting Type:
Surface Mount
-
Base Part Number:
CSD88537
-
Vgs(th) (Max) @ Id:
3.6V @ 250µA
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Standard
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Part Status:
Active
-
Series:
NexFET™
-
Drain to Source Voltage (Vdss):
60V
-
Rds On (Max) @ Id, Vgs:
15mOhm @ 8A, 10V
-
Current - Continuous Drain (Id) @ 25°C:
15A
-
Power - Max:
2.1W
-
Gate Charge (Qg) (Max) @ Vgs:
18nC @ 10V
-
detail:
Mosfet Array 2 N-Channel (Dual) 60V 15A 2.1W Surface Mount 8-SOIC
