دیتاشیت DTA143XUA

DTA143XUA

مشخصات دیتاشیت

نام دیتاشیت DTA143XUA
حجم فایل 56.734 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

دانلود دیتاشیت DTA143XUA

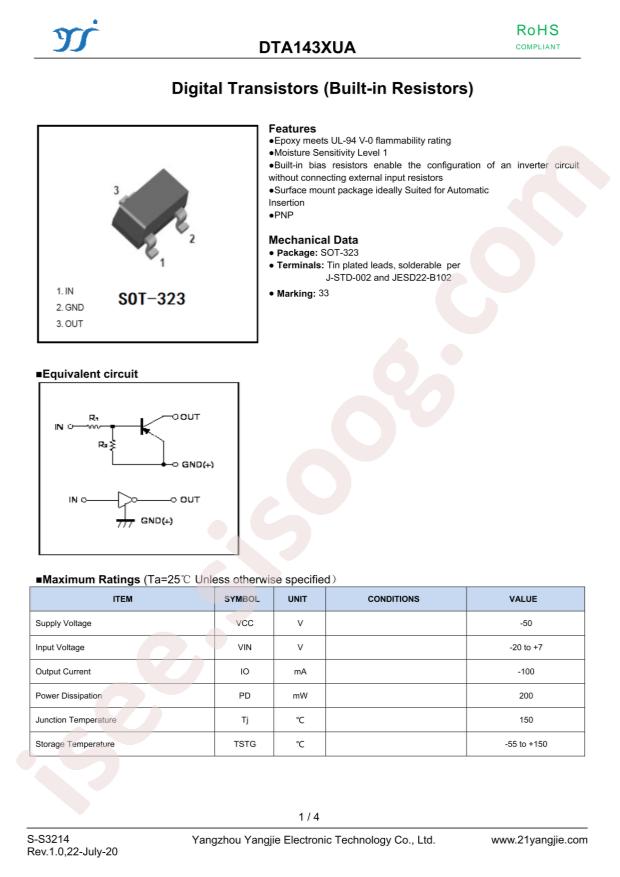

DTA143XUA Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Digital Transistors
  • Datasheet: Yangzhou Yangjie Elec Tech DTA143XUA
  • Input Resistor: 4.7kΩ
  • Resistor Ratio: 2.1
  • Transistor Type: One PNP - Pre-Biased
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 100mA
  • Power Dissipation (Pd): 200mW
  • Transition Frequency (fT): 250MHz
  • DC Current Gain (hFE@Ic,Vce): 30@10mA,5V
  • Input Voltage (VI(on)@Ic,Vce): 2.5V@20mA,0.3V
  • Output Voltage (VO(on)@Io/Ii): 0.3V@10mA,0.5mA
  • Input Voltage (VI(off)@Ic,Vce): 0.3V@100uA,5V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 50V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): -
  • Package: SOT-323(SC-70)
  • Manufacturer: Yangzhou Yangjie Elec Tech
