دیتاشیت NCP1034DR2G
مشخصات دیتاشیت
| نام دیتاشیت | NCP1034 Datasheet |
|---|---|
| حجم فایل | 477.054 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |

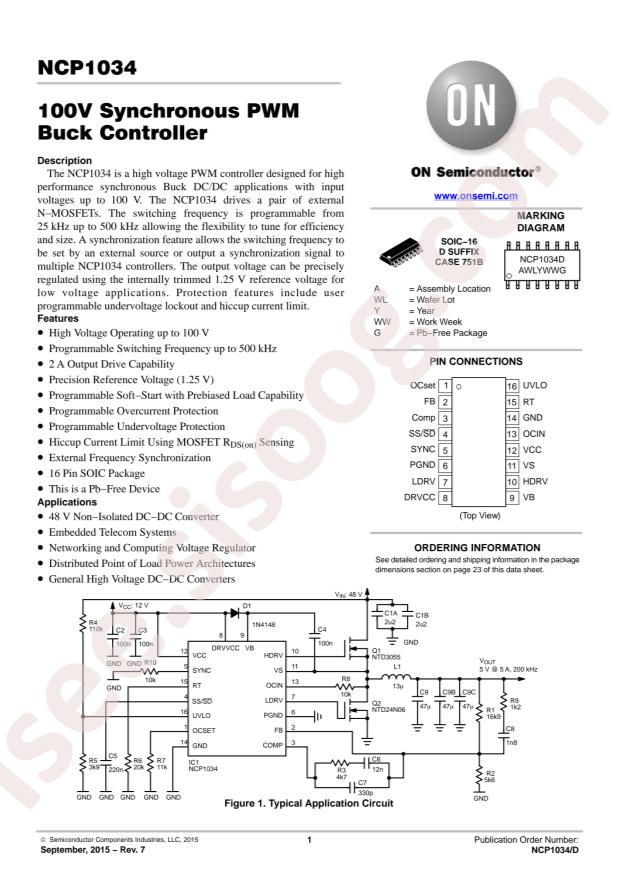

دانلود دیتاشیت NCP1034 Datasheet |
NCP1034 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Step-down type
- Topology: Step-down
- Datasheet: onsemi NCP1034DR2G
- Input Voltage: 10V~18V
- Duty Cycle (Max): 80%
- Number of Outputs: 1
- Switching Frequency: 500kHz
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: SOP-16
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 10V ~ 18V
- Frequency - Switching: 25kHz ~ 500kHz
- Synchronous Rectifier: Yes
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Current Limit, Enable, Frequency Control, Soft Start
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
- Base Part Number: NCP1034
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-SOIC
