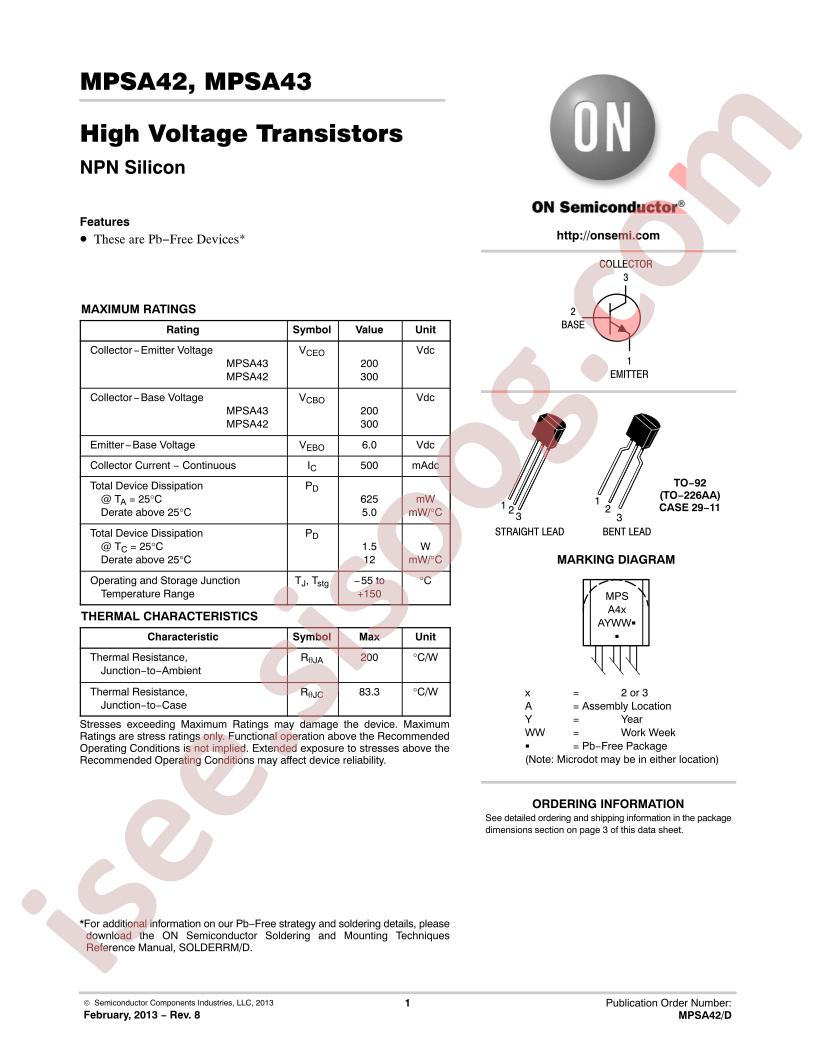

دیتاشیت MPSA42 TO-92
مشخصات دیتاشیت
| نام دیتاشیت |
MPSA42,43
|
| حجم فایل |
104.322
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Active
-
Transistor Type:
NPN
-
Current - Collector (Ic) (Max):
500mA
-
Voltage - Collector Emitter Breakdown (Max):
300V
-
Vce Saturation (Max) @ Ib, Ic:
500mV @ 2mA, 20mA
-
Current - Collector Cutoff (Max):
100nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
40 @ 30mA, 10V
-
Power - Max:
625mW
-
Frequency - Transition:
50MHz
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-226-3, TO-92-3 (TO-226AA)
-
Supplier Device Package:
TO-92-3
-
Base Part Number:
MPSA42
-
detail:
Bipolar (BJT) Transistor NPN 300V 500mA 50MHz 625mW Through Hole TO-92-3
