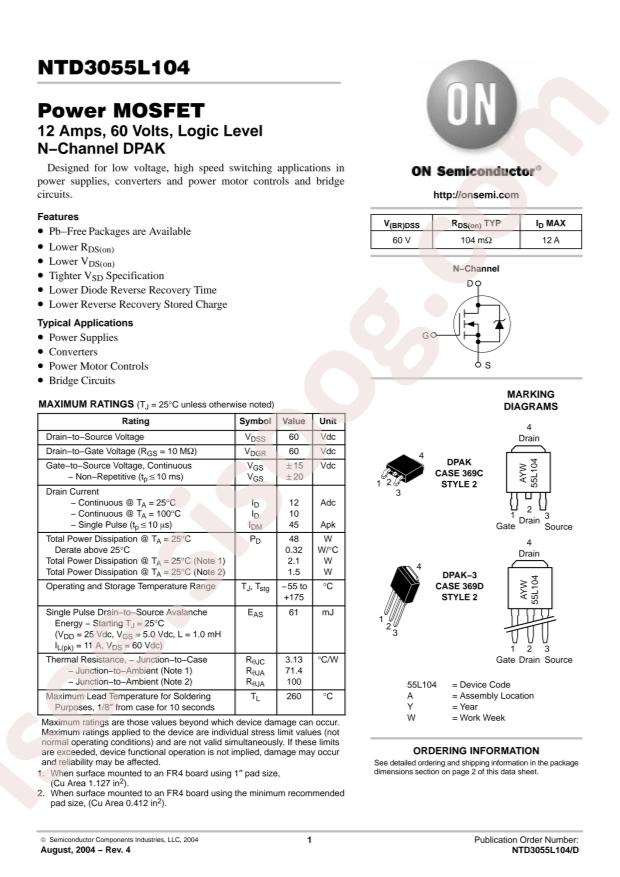

دیتاشیت NTD3055L104T4G
مشخصات دیتاشیت
| نام دیتاشیت |
NTD3055L104
|
| حجم فایل |
150.552
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTD3055L104T4G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
1.5W;48W
-
Total Gate Charge (Qg@Vgs):
20nC@5V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
440pF@25V
-
Continuous Drain Current (Id):
12A
-
Gate Threshold Voltage (Vgs(th)@Id):
2V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
104mΩ@5V,6A
-
Package:
TO-252
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
12A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
5V
-
Rds On (Max) @ Id, Vgs:
104mOhm @ 6A, 5V
-
Vgs(th) (Max) @ Id:
2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
20nC @ 5V
-
Vgs (Max):
±15V
-
Input Capacitance (Ciss) (Max) @ Vds:
440pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
1.5W (Ta), 48W (Tj)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
DPAK
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
NTD30
-
detail:
N-Channel 60V 12A (Ta) 1.5W (Ta), 48W (Tj) Surface Mount DPAK
