دیتاشیت IC L7805CV-DG TO220-3 ST | 00
مشخصات دیتاشیت
نام دیتاشیت | L78 |
---|---|
حجم فایل | 1174.589 کیلوبایت |
نوع فایل | |
تعداد صفحات | 55 |
دانلود دیتاشیت L78 |
L78 Datasheet |
---|
مشخصات
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 35V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 2V @ 1A (Typ)
- Current - Output: 1.5A
- Current - Quiescent (Iq): 8mA
- PSRR: 62dB (120Hz)
- Control Features: -
- Protection Features: Over Temperature, Short Circuit
- Operating Temperature: 0°C ~ 125°C
- Mounting Type: Through Hole

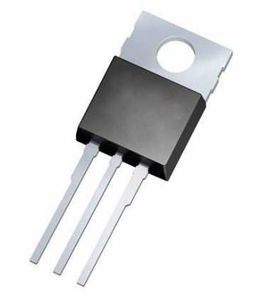

- Package / Case: TO-220-3
- Supplier Device Package: TO-220
- Base Part Number: L7805
- detail: Linear Voltage Regulator IC 1 Output 1.5A TO-220
