دیتاشیت IC DRV8871DDAR PowerSOIC8 Texas Instruments | 00

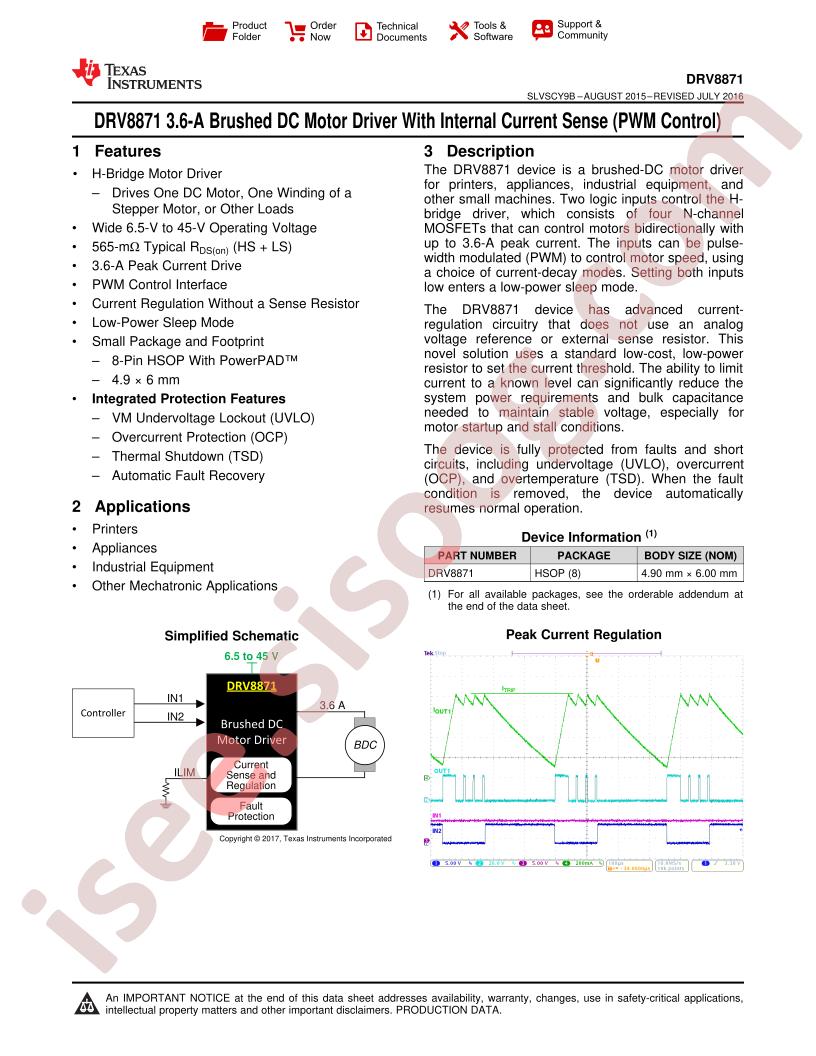

DRV8871 Datasheet

مشخصات دیتاشیت

نام دیتاشیت DRV8871 Datasheet
حجم فایل 1903.743 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت DRV8871 Datasheet

DRV8871 Datasheet Datasheet

مشخصات

  • Base Part Number: DRV8871
  • Motor Type - Stepper: Unipolar

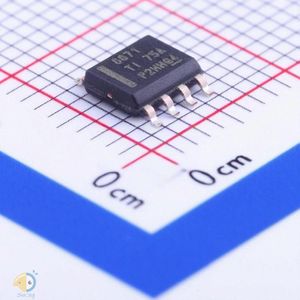

  • Package / Case: 8-PowerSOIC (0.154", 3.90mm Width)
  • Applications: DC Motors, General Purpose, Stepper Motors
  • Supplier Device Package: 8-SO PowerPad
  • Current - Output: 3.6A
  • Voltage - Load: 6.5V ~ 45V
  • Interface: PWM
  • Output Configuration: Full Bridge
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Packaging: Cut Tape (CT)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Step Resolution: -
  • Part Status: Active
  • Manufacturer: Texas Instruments
  • Series: -
  • Mounting Type: Surface Mount
  • Motor Type - AC, DC: Brushed DC
  • Voltage - Supply: 0V ~ 5.5V
  • Technology: NMOS
  • detail: Unipolar Motor Driver NMOS PWM 8-SO PowerPad
