دیتاشیت IC TLC2578IDW SOIC24 Texas Instruments | 00

TLC3574/78, TLC2574/78

مشخصات دیتاشیت

نام دیتاشیت TLC3574/78, TLC2574/78
حجم فایل 1874.519 کیلوبایت
نوع فایل pdf
تعداد صفحات 51

دانلود دیتاشیت TLC3574/78, TLC2574/78

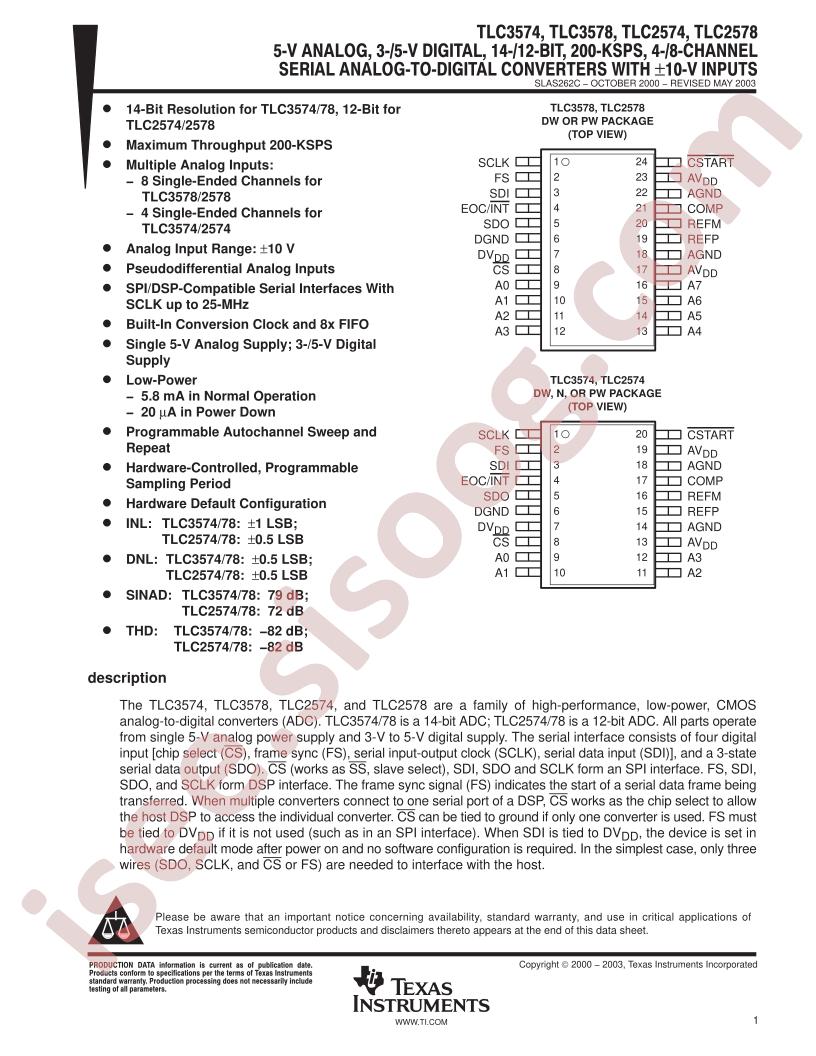

TLC3574/78, TLC2574/78 Datasheet

مشخصات

  • Configuration: MUX-S/H-ADC
  • Voltage - Supply, Analog: 5V
  • Base Part Number: TLC2578
  • Operating Temperature: -40°C ~ 85°C
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • Number of Bits: 12
  • Series: -
  • Package / Case: 24-SOIC (0.295", 7.50mm Width)
  • Packaging: Tube
  • Supplier Device Package: 24-SOIC
  • Number of Inputs: 4, 8
  • Ratio - S/H:ADC: 1:1
  • Reference Type: External
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Sampling Rate (Per Second): 200k
  • Manufacturer: Texas Instruments
  • Number of A/D Converters: 1
  • Data Interface: SPI
  • Architecture: SAR
  • Input Type: Pseudo-Differential, Single Ended
  • Features: -
  • detail: 12 Bit Analog to Digital Converter 4, 8 Input 1 SAR 24-SOIC
