SMBJ24A 数据手册
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/TVS

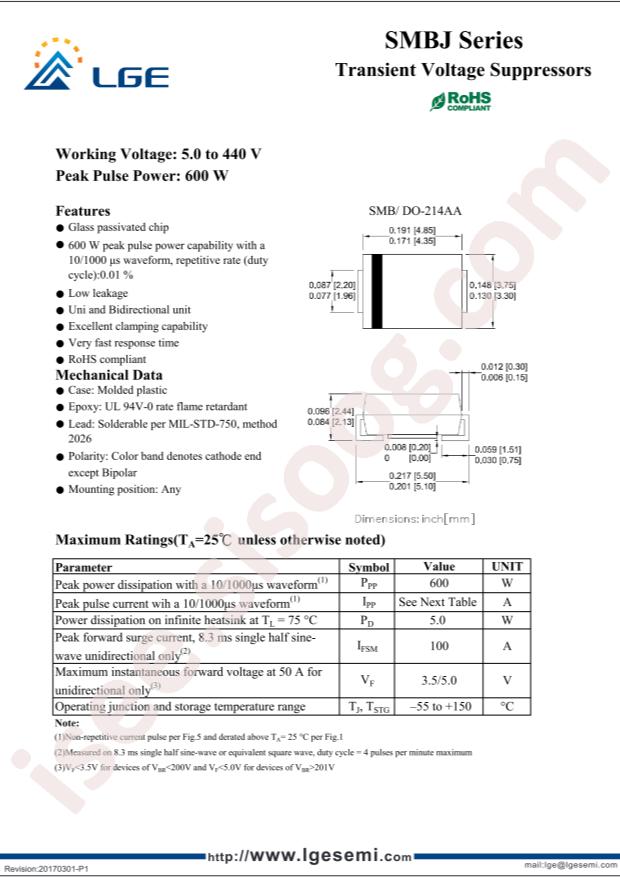

- Datasheet: LGE SMBJ17CA
- Breakdown Voltage: 18.9V
- Maximum Clamping Voltage: 27.6V
- Reverse Leakage Current (Ir): 1uA
- Reverse Stand-Off Voltage (Vrwm): 17V
- Peak Pulse Current (Ipp)@10/1000us: 21.74A
- Package: SMB(DO-214AA)
- Manufacturer: LGE
- Peak Pulse Power Dissipation (Ppp)@10/1000us: 600W
- Bidirectional Channels: 1
