دیتاشیت SN7406N

SN5406, SN5416, SN7406, SN7416

مشخصات دیتاشیت

نام دیتاشیت SN5406, SN5416, SN7406, SN7416
حجم فایل 1178.424 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

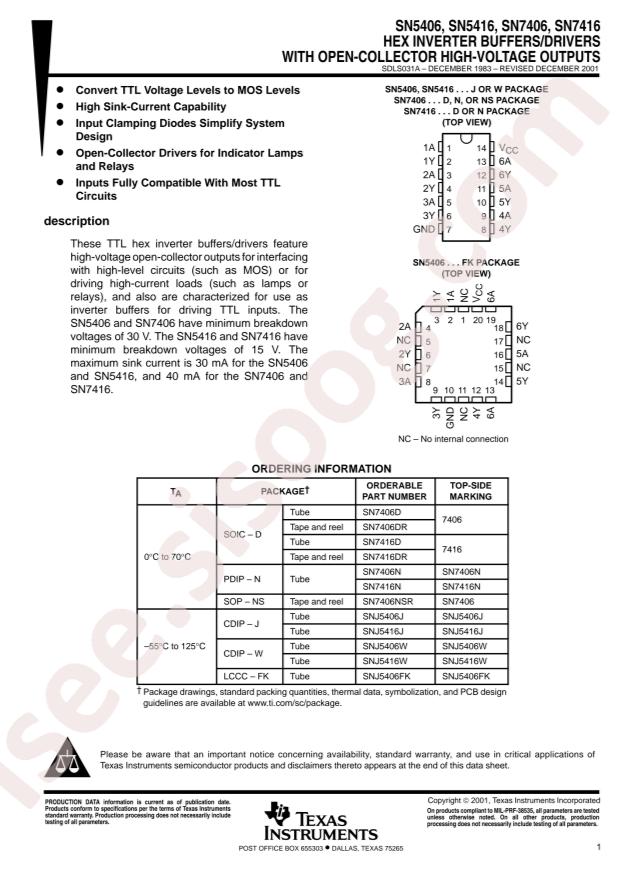

دانلود دیتاشیت SN5406, SN5416, SN7406, SN7416

SN5406, SN5416, SN7406, SN7416 Datasheet

مشخصات

  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Base Part Number: SN740
  • Logic Level - Low: 0.8V
  • Features: Open Collector
  • Supplier Device Package: 14-PDIP
  • Max Propagation Delay @ V, Max CL: 23ns @ 5V, 15pF
  • Number of Inputs: 6
  • Operating Temperature: 0°C ~ 70°C
  • Packaging: Tube
  • Mounting Type: Through Hole
  • Voltage - Supply: 4.75V ~ 5.25V
  • Part Status: Active
  • Manufacturer: Texas Instruments
  • Series: 7400
  • Logic Type: Inverter
  • Logic Level - High: 2V
  • Number of Circuits: 6
  • Current - Output High, Low: -, 40mA
  • detail: Inverter IC 6 Channel Open Collector 14-PDIP
