دیتاشیت SN74HC259N

SN54HC259, SN74HC259

مشخصات دیتاشیت

نام دیتاشیت SN54HC259, SN74HC259
حجم فایل 1221.841 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت SN54HC259, SN74HC259

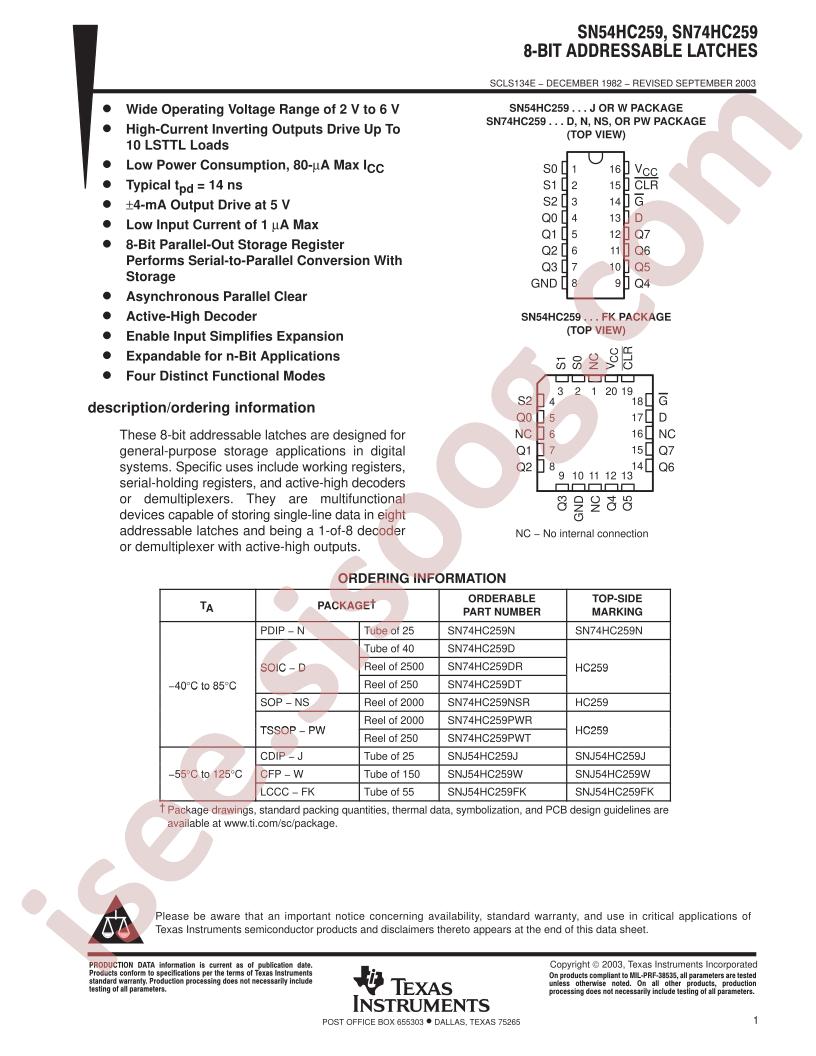

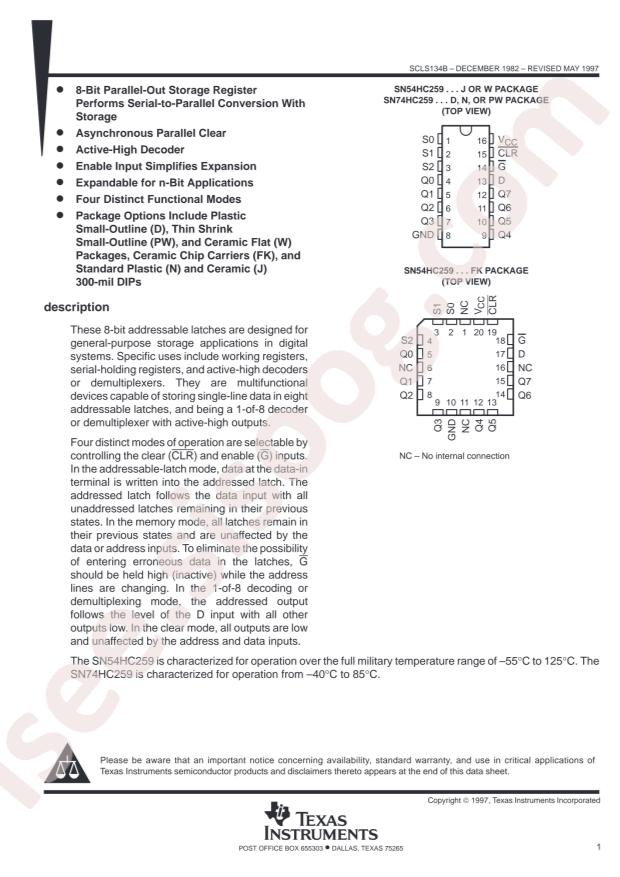

SN54HC259, SN74HC259 Datasheet

مشخصات

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Latches
  • Datasheet: Texas Instruments SN74HC259N
  • Logic Type: 可寻址锁存器
  • Output Type: Standard
  • Sink Current: 5.2mA
  • Source Current: 5.2mA
  • Supply Voltage: 2V~6V
  • Propagation Delay: 13ns
  • Number of Channels: 8
  • OperatingTemperature: -40°C~+85°C
  • Package: DIP-16
  • Manufacturer: Texas Instruments
  • Independent Circuits: 1
  • Voltage - Supply: 2V ~ 6V
  • Circuit: 1:8
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Delay Time - Propagation: 13ns
  • Part Status: Active
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Supplier Device Package: 16-PDIP
  • Base Part Number: SN74HC2
  • detail: D-Type, Addressable 1 Channel 1:8 IC Standard 16-PDIP
