دیتاشیت STP120NF10*

STx120NF10

مشخصات دیتاشیت

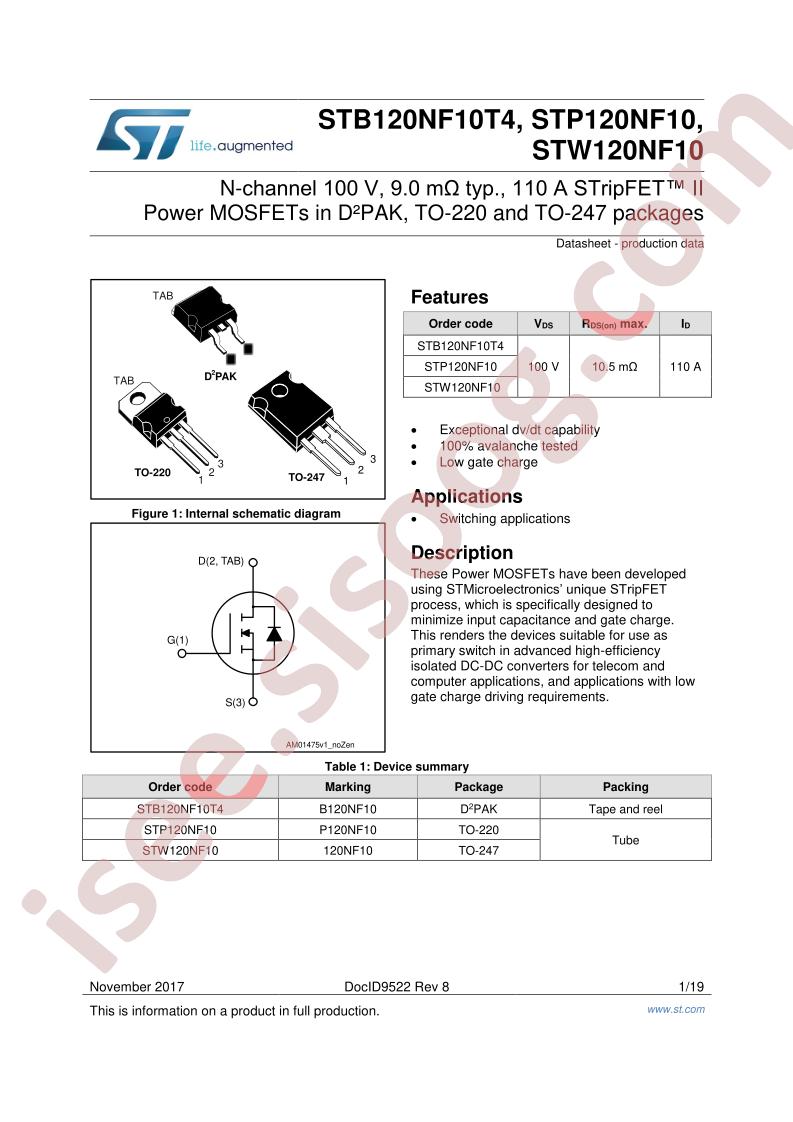

نام دیتاشیت STx120NF10
حجم فایل 1055.845 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت STx120NF10

STx120NF10 Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: STripFET™ II
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 100V
  • Current - Continuous Drain (Id) @ 25°C: 110A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 10.5mOhm @ 60A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 233nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 5200pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 312W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • Base Part Number: STP120
  • detail: N-Channel 100V 110A (Tc) 312W (Tc) Through Hole TO-220AB
