- دیتاشیت AD9269BCPZ-20
AD9269BCPZ-20 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | AD9269BCPZ-20 |
|---|---|
| حجم فایل | 104.541 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 40 |
دانلود دیتاشیت AD9269BCPZ-20 |
دانلود دیتاشیت |
|---|
سایر مستندات
AD9269 40 pages
AD9269BCPZ-20 40 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD9269BCPZ-20
- Interface: Parallel
- resolution: 16Bit
- Supply Voltage: 1.7V~1.9V
- differential input: Yes
- number of channels: 2
- sampling frequency: 20MHz
- Operating Temperature: -40°C~+85°C
- Package: LFCSP-64
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tray
- Part Status: Active
- Number of Bits: 16
- Sampling Rate (Per Second): 20M
- Number of Inputs: 2
- Input Type: Differential
- Data Interface: Parallel
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 2
- Architecture: Pipelined
- Reference Type: External, Internal
- Voltage - Supply, Analog: 1.7V ~ 1.9V
- Voltage - Supply, Digital: 1.7V ~ 3.6V
- Features: Simultaneous Sampling

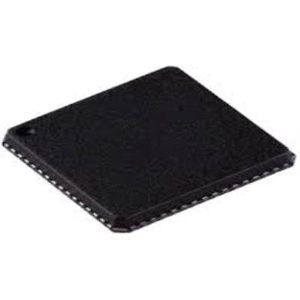

- Package / Case: 64-VFQFN Exposed Pad, CSP
- Supplier Device Package: 64-LFCSP-VQ (9x9)
- Mounting Type: Surface Mount
- Base Part Number: AD9269
- detail: 16 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-LFCSP-VQ (9x9)
