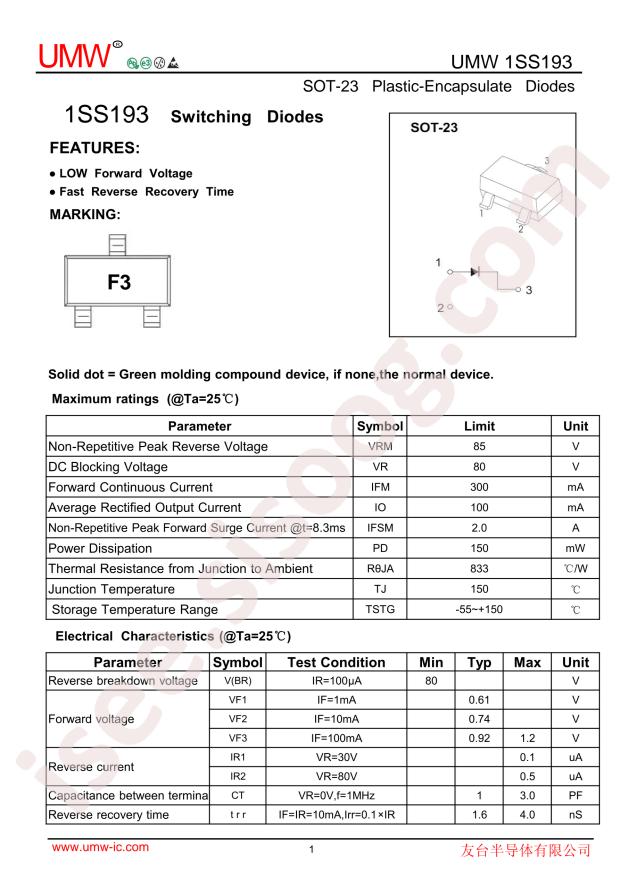

1SS193 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | 1SS193 |
|---|---|
| حجم فایل | 94.676 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 3 |
دانلود دیتاشیت 1SS193 |
دانلود دیتاشیت |
|---|
سایر مستندات

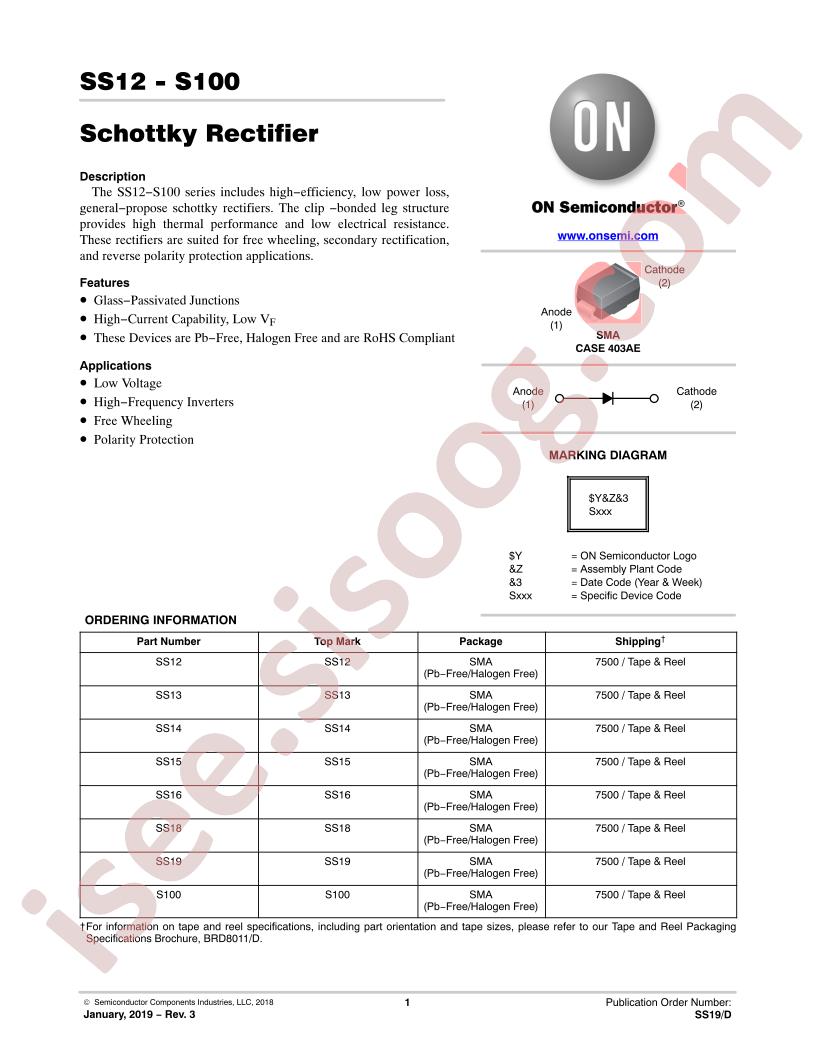

SS12 - S100 5 pages
1SS193 2 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Switching Diode
- Datasheet: UMW(Youtai Semiconductor Co., Ltd.) 1SS193
- Power Dissipation: 150mW
- Diode Configuration: Single
- Reverse Voltage (Vr): 80V
- Operating Temperature: +150°C@(Tj)
- Forward Voltage (Vf@If): 920mV@100mA
- Reverse Leakage Current: 500nA@80V
- Reverse Recovery Time (trr): 1.6ns
- Average Rectified Current (Io): 100mA
- Package: SOT-23(TO-236)
- Manufacturer: UMW(Youtai Semiconductor Co., Ltd.)
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 90V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 850mV @ 1A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 200µA @ 90V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA (DO-214AC)
- Operating Temperature - Junction: -65°C ~ 125°C
- Base Part Number: SS19
- detail: Diode Schottky 90V 1A Surface Mount SMA (DO-214AC)
