دیتاشیت 6N137M

مشخصات دیتاشیت

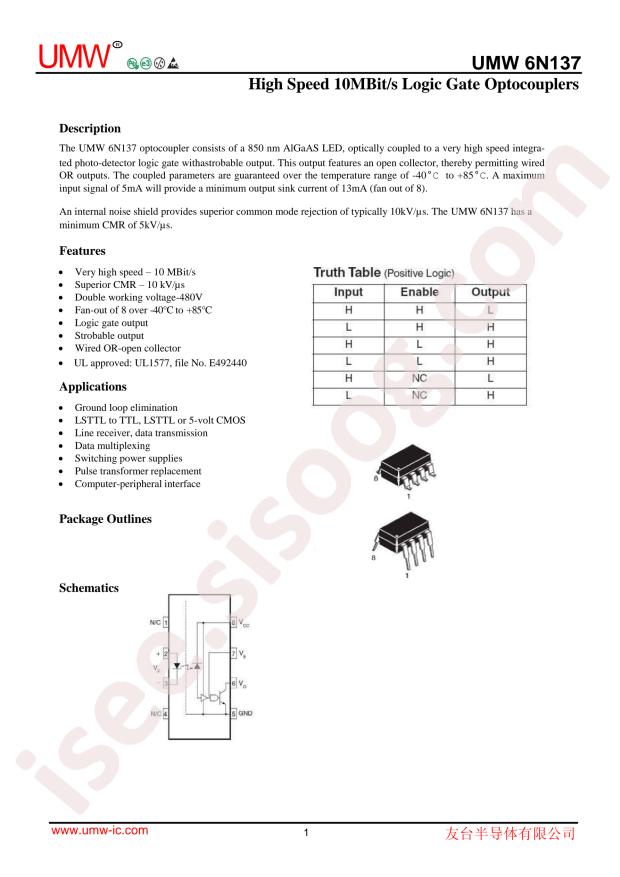

دانلود دیتاشیت 6N137M, HCPL26xxM	6N137M, HCPL26xxM Datasheet

RoHS: true
Category: Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
Data Rate: 10Mbit/s
Datasheet: onsemi 6N137M
Input Type: DC
Supply Voltage: 4.5V~5.5V
Number of Channels: 1
Operating Temperature: -40°C~+100°C
Isolation Voltage(rms): 5000V
Propagation Delay tpLH/tpHL: 75ns
Common Mode Transient Immunity (CMTI): 10kV/us
Package: DIP-8
Manufacturer: onsemi
Series: -
Packaging: Tube
Part Status: Active
Inputs - Side 1/Side 2: 1/0
Voltage - Isolation: 5000Vrms
Common Mode Transient Immunity (Min): 10kV/µs (Typ)
Output Type: Open Collector
Current - Output / Channel: 50mA
Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
Rise / Fall Time (Typ): 30ns, 10ns
Voltage - Forward (Vf) (Typ): 1.45V
Current - DC Forward (If) (Max): 50mA
Voltage - Supply: 4.5V ~ 5.5V
Mounting Type: Through Hole
Package / Case: 8-DIP (0.300", 7.62mm)
Supplier Device Package: 8-DIP
Base Part Number: 6N137
detail: Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 1 Channel 10kV/µs (Typ) CMTI 8-DIP
